RS232 to TTL Serial Interface Module

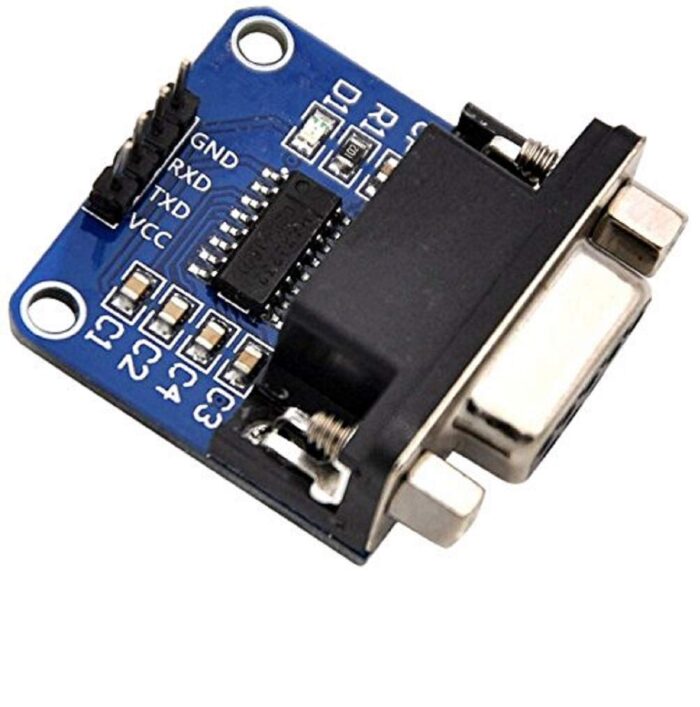

This RS232 to TTL Serial Interface Module is a board with the MAX3232
transceiver integrated circuit (IC). It facilitates serial
communication between TTL and RS232 ports by providing the necessary
electrical signal conversion.

These boards usually have a DB9
connector soldered at one end, and four header pins with jumper cables
at the other end. The jumper cables enable the user to connect the wires
to a breadboard or a microcontroller project board, whilst the DB9 connects directly to a COM port of a computer.

The MAX3232CSE+
IC, which comes in a 16 pin narrow SO package. It requires between 3.0 V
to 5.5 V to operate and has two receivers and two transmitters. It has a
maximum guaranteed data rate of 120 kbps, and the circuitry requires
four 0.1µF charge-pump support capacitors. It is also compatible with
the famous MAX323 IC pins. These boards connect to systems with a UART  hence, they work with ATMEL and PIC microcontrollers.

MAX3232 RS232
Serial Port To TTL Converter Module DB9 Connector 5V RS232 to TTL +
Female Serial TTL + serial modules / Brush board. This module can be
used to the serial port of microcontroller module expand DVD, router,
hard drive and other equipment to upgrade.

Features :

1. It is widely used in radio modification, phone flash, XBOX360 flash,
   GPS, vehicle detection, DVD flash, hard disk repair set-top box
   upgrade.
2.  It can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, N+-2EC MCU
3. Pre-assembled compact size board
4. Suitable for use with most microcontrollers
5. Operates up to 250 kbit/s

Package Includes :

1 x RS232 to TTL Serial Interface Module

No Guarantee No Warranty

Product image is for reference purpose only.
