PAM8610 Mini 10 and 10W Stereo Audio Power Amplifier Board Module Volume Control Knob

PAM8610 Mini 10+10W Stereo Audio Power Amplifier Board Module Volume Control Knob

10W class-D stereo audio amplifier,10W(left channel)+10W(right) output power into an 8Ω speaker load and 12V power supply
Offers low THD+N, high-quality sound reproduction, high efficiency: 90%
Operate on any voltage from 7.5V to 15V, conveniently powered with a 9V or 12V power supply or battery
High efficiency but low cost achieved by CMOS class D amplifier design
For DIY design, requiring a miniature audio amplifier, portable and mobile applications operating on battery power

Description:

– 10W class-D stereo audio amplifier,10W(left channel)+10W(right) output power into an 8Ω speaker load and 12V power supply
– Offers low THD+N, high-quality sound reproduction, high efficiency: 90%
– Operate on any voltage from 7.5V to 15V, conveniently powered with a 9V or 12V power supply or battery
– High efficiency but low cost achieved by CMOS class D amplifier design
– For DIY design, requiring a miniature audio amplifier, portable and mobile applications operating on battery power

Specification:

– Size: Approx. 40 ×40 ×22 mm/ 1.57 ×1.57 ×0.87 inch, including volume control knob
– Volume control potentiometer shaft diameter: Approx. 6mm/ 0.24 inch
– Output power: 10W+10W, 8Ω
– Frequency response: 20Hz to 50KHz
– Amplifier class: D
– Operating voltage: 7.5 – 15V DC
– Recommended supply voltage: 12V, the connector center PIN is +
– Quiescent Current: 20mA
– Speaker Load: 4-8 Ohms, 8Ω recommended, screw terminal connectors
– Noise canceling circuit built into the amplifier board
– Screw terminals for easy speaker connection – no soldering needed
– No popping noise when Power on/ off

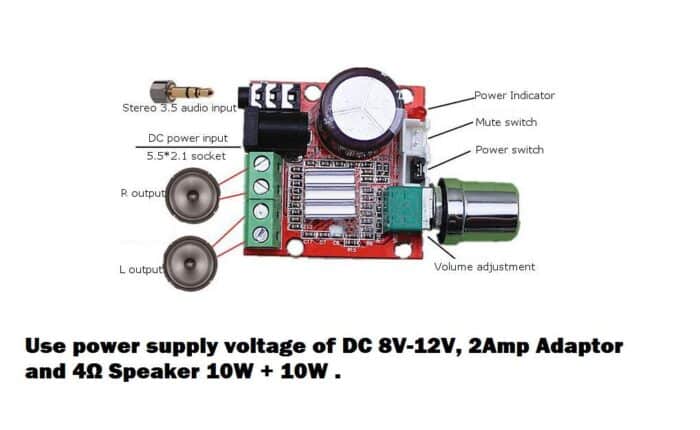

– Power switch and mute switch connectors and volume control potentiometer
– Short-circuit current protection: under-voltage lockout and
over-temperature protection (shuts down at an internal temperature of
140C±15C)
