1.8 Inch SPI TFT LCD Module 128×160 with 4 IO

1.8 Inch SPI TFT LCD Module 128×160 with 4 IO

This lovely little display breakout is the best way to add a small, colourful and bright display to any project.

Since
the 1.8 Inch TFT LCD Module display uses 4-wire SPI to communicate and
has its own pixel-addressable frame buffer, it can be used with every
kind of microcontroller. Even a very small one with low memory and few
pins available!

The
1.8 display has 128160 colour pixels. Unlike the low cost Nokia 6110
and similar LCD displays, which are CSTN type and thus have poor colour
and slow refresh, this display is a true TFT! The TFT driver (ST7735R)
can display full 18-bit colour (262,144 shades!).

And
the LCD will always come with the same driver chip so there are no
worries that your code will not work from one to the other.

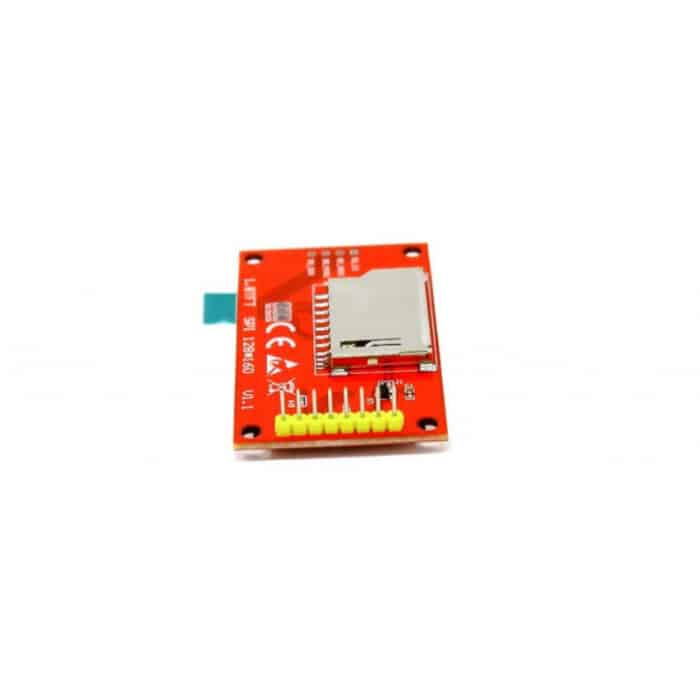

The
breakout has the TFT display soldered on (it uses a delicate
flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator
and a 3/5V level shifter so you can use it with 3.3V or 5V power and
logic.

We
also had a little space so we placed a microSD card holder so you can
easily load full-colour bitmaps from a FAT16/FAT32 formatted microSD
card.

Features :

1. 1.8-inch serial SPI colour display module
2. Support analogue SPI and hardware SPI
3. The LCD has a wide viewing angle, the contrast is also very suitable.
4. Good quality display.

Package includes:

1 x1.8 Inch TFT LCD Module 128 x 160 with 4 IO

No Guarantee No Warranty

Product image is for reference purpose only.
