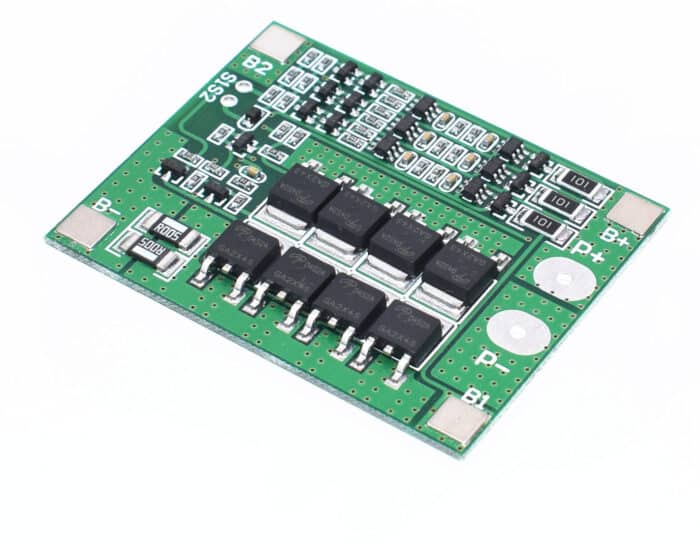

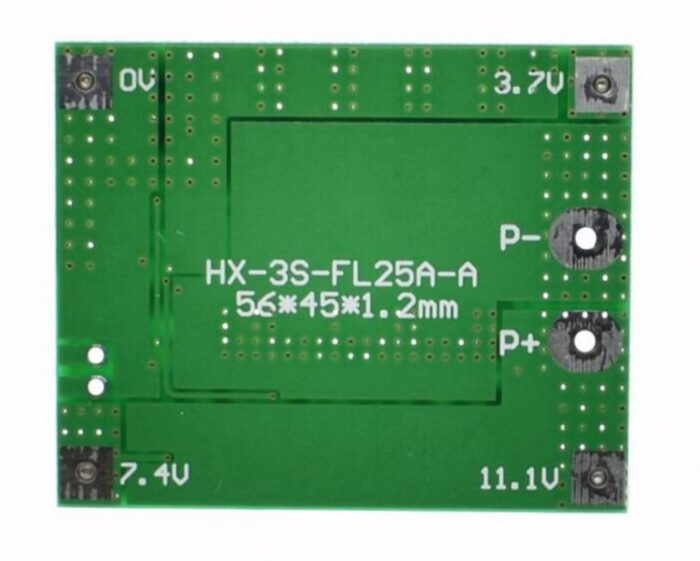

3S 12V 25A 18650 Lithium Battery Protection Board BMS

This is 3S 12V 25A 18650 Lithium
Battery Protection Board 11.1V 12.6V High Current With Balanced Circuit
Over Charge Over-Discharge Over Current And Short Circuit Protection
Function. Board charging and discharging are the same port, the board
includes the balanced circuit.

When
the charge balance, the board will be a bit warm, even after
disconnecting the charger, some are still in the balance, will continue
to warm for a while until below the equilibrium break threshold.

The
protection board cannot be used for iron lithium polymer battery (for
other batteries, no matter what material, as long as the overvoltage and
put voltage can be used for cutting), electric finish machinery,
electric bicycle batteries, car, and motorcycle starter battery
protection.

Electric
drill, 775 motors (6A-10A), small power inverter, small power vacuum
massager battery, LED lamp, 12V standby power electronic products,
12V120W car washing pump, battery, solar street lamp monitoring standby
power supply, and other products.

Rated current can’t over 25A, it can’t exceed 50A per 0.5 seconds.

Specifications :

1. Overcharge voltage range: 4.25-4.35v + 0.05v.
2. Overdischarge voltage range: 2.3-2.7v + 0.05v.
3. Operating current: 0 – 25A.
4. Operating temperature: -40 – +50℃.
5. Instantaneous current: 35 – 40A.
6. Storage condition: -40 – +80℃.
7. Quiescent current: less than 30uA.
8. Balance current: about 40 – 50mA.
9. Effective life: more than 30000 hours.
10. Internal resistance: less than 100m ohm.
11. Short-circuit protection: protection, delayed self recovery.

Package includes:

1 x 3S 12V 18650 lithium battery protection board.

No Guarantee No Warranty

Actual product may vary from the product photograph displayed above. Photograph just for reference.
