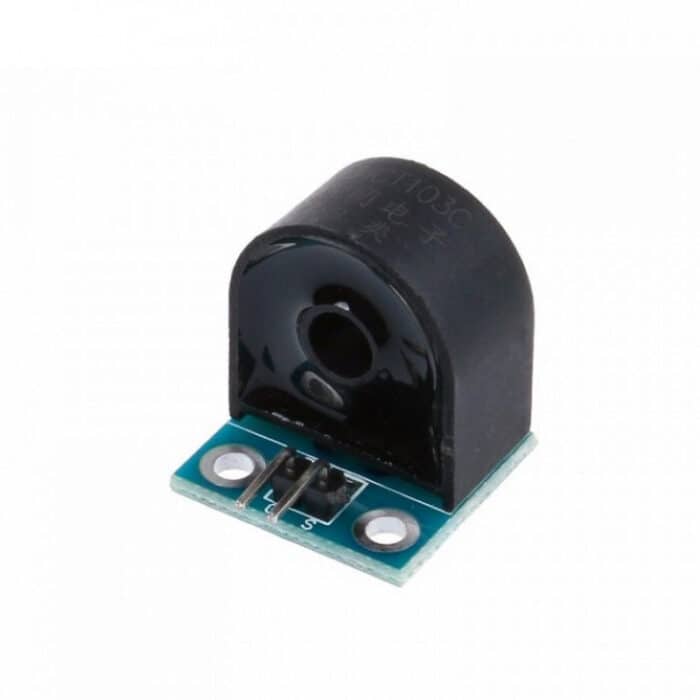

5A Single Phase AC Current Sensor - Image 1

5A Single Phase AC Current Sensor - Image 2

Click to enlarge

5A Single Phase AC Current Sensor - Image 3

5A Single Phase AC Current Sensor

Name: 5A Single Phase AC Current Sensor
SKU: SE42363
Price: 120.00 INR
Availability: OutOfStock

₹120.00 (Incl. Tax)

Out of stock

Add to compare

5 People watching this product now!

SKU: SE42363 Categories: Arduino & Interface Modules, Module, Sensor Tag: 5A Single Phase AC Current Sensor

Description

5A range of single-phase ac current sensor module can measure AC currents less than 5A, the corresponding analog output 5A/5mA.

It has Onboard sampling resistor and precision micro current transformer do accurate sampling for the signal and appropriate compensation, and other functions. The module can measure within 5A current communication, corresponding to output analog quantity can be adjusted.

Features :

Onboard precision microcurrent transformer.
Onboard sampling resistor.
The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA.

Specifications:-

Rated Input Current (A)	5
Rated Output Current (mA)	5
The linear range	0 ~ 10A (100 ohms)
Change	1000: 1
Linearity	0.2%
Precision Rating	0.2
Sealing material	Epoxy Resin
Operating Temperature (C)	-40 to +90
