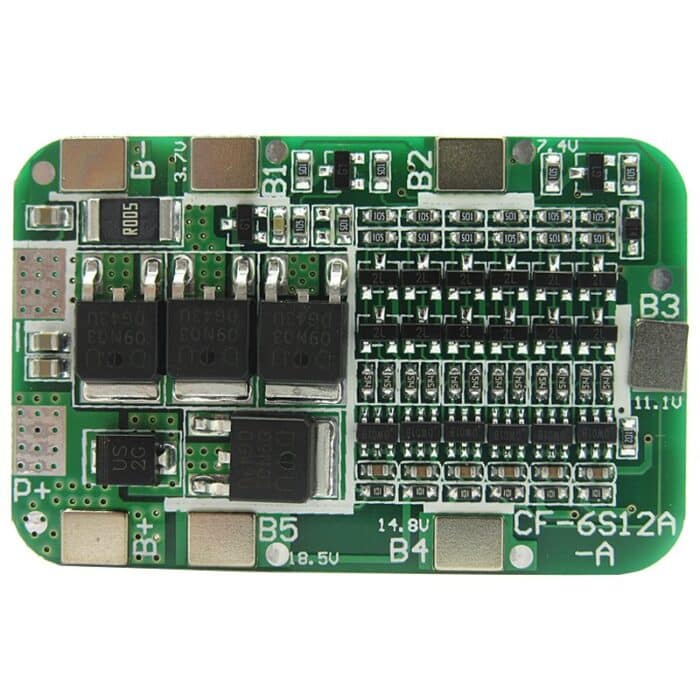

6S BMS 22V 18650 Lithium Battery Protection Board

BMS 6
Series 22V 18650 Lithium Battery Protection Board is a 6 string 22V
circuit power tools mostly used for solar lighting, for dedicated 18650
battery packs. It is designed for 3.7V 18650 models lithium batteries
for charging, Protection from overcharge and over-discharge.

Battery
protection board, as the name suggests battery protection board is
mainly rechargeable (Refers to the lithium battery) and protects the
integrated circuit board.

Lithium battery (rechargeable type) so need protection, is determined by its own characteristics.

As
the lithium battery, its material determines itself can not be
overcharge, over-discharge, overcurrent, short circuit, and ultra-high
temperature charge and discharge, so lithium battery lithium components
will always follow A protective plate with sampling resistor, and a
current fuse.

Features:

1. Model: 6 string 22V lithium battery protection board.
2. Maximum operating current: Within 15A.
3. Charging current: Within 15A.
4. Balanced charge: None.
5. Short circuit protection: Yes.
6. Applicable assembly: Nominal 3.7V Batteries / 6 strings.

Specifications:

Battery	6 Cell
Overcharge detection voltage (V)	4.25±0.025
Over-discharge detection voltage (V)	2.50±0.08
Over current Protection (A)	50
Working current (A)	14
Operating Temperature (°C)	-40 ~ +85
Length (mm)	50
Width (mm)	32
Height (mm)	4
Weight (gm)	6

No Guarantee No Warranty

Product image is for reference purpose only.
