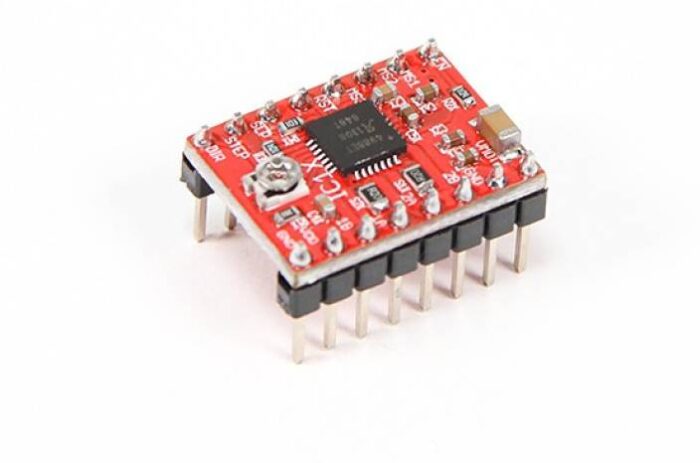

A4988 driver Stepper Motor Driver- Normal Quality

The A4988 driver Stepper Motor Driver is a complete micro-stepping motor driver with built-in converter, easy to operate. It
operates from 8 V to 35 V and can deliver up to approximately 1 A per
phase without a heat sink or forced air flow (it is rated for 2 A per
coil with sufficient additional cooling).

A4988 driver Stepper Motor
Driver includes a fixed off-time current regulator, the regulator can
be in slow or mixed decay mode. The converter is the key to the easy
implementation of the A4988.

There are no phase sequence tables, the high-frequency control interface programming etc. The application of A4988
interface is very suitable for a complex microprocessor is not
available or overload. In the stepping operation, the chopping control
in the A4988
automatically selects the current decay mode (slow or mixed). The mix
decay current control scheme can reduce the audible motor noise,
increased step accuracy, and reduced power consumption.

Provide internal synchronous rectification control circuitry, in
order to improve the pulse width modulation (PWM) power consumption
during operation.

Internal circuit protection includes thermal shutdown with
hysteresis, under-voltage lockout (UVLO) and crossover current
protection. Don’t need special power-up sequencing. A4988 uses surface
mount QFN package (ES), the size is 5 mm × 5 mm, nominal overall package
height is 0.90 mm, with an exposed thermal pad to enhance the heat
dissipation function.

Note: The difference between product “A4988 driver Stepper Motor Driver- Normal Quality” and “A4988 driver Stepper Motor Driver- Good Quality”  is, The good quality A4988 has more number of PCB layers and it features the connecting pins which are of gold plated as compared to other.

Features :

1. Automatic current decay mode detection/choice.
2. Mixed with slow current decay mode.
3. The low power dissipation of synchronous rectifier.
4. Internal UVLO(ultra voltage lockout).
5. Crossover current protection.
6. Thermal shutdown circuit.
7. Ground fault protection.
8. Loading and short circuit protection.
9. The optional five-step mode: full, 1/2, 1/4, 1/8 and 1/16.
