D69-2042 with CT Dual Display Voltmeter Ammeter Car motorcycle AC80-300V 0-50A

Product Description

Description

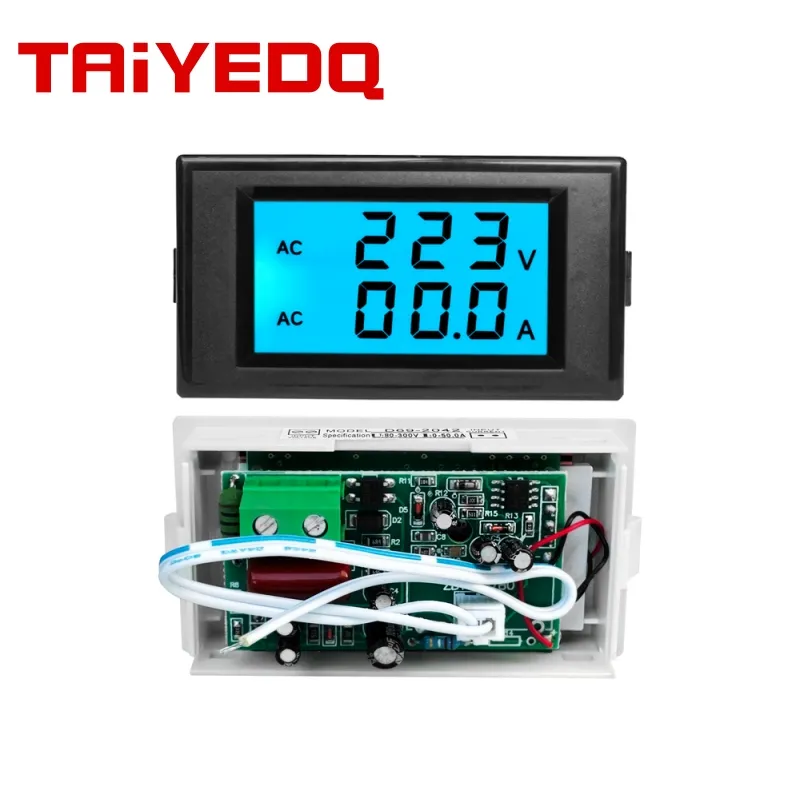

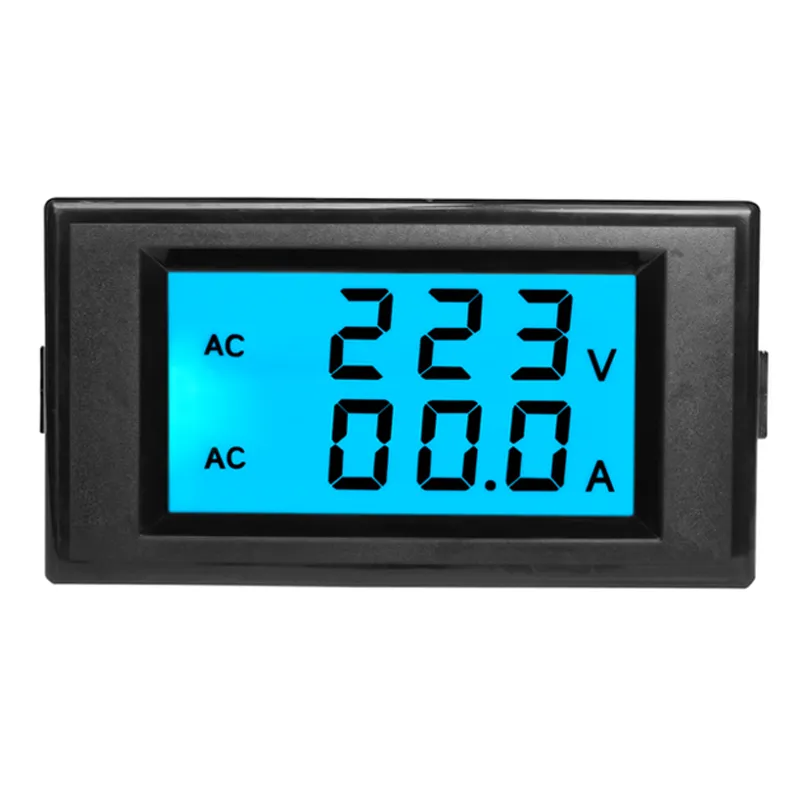

D69-2042 digital AC voltage and ammeter display the measured AC voltage and AC current on the same instrument at the same time. The LCD display is blue backlight and the measurement and reading very convenient. The instrument does not need additional working power supply and AC transformer (the instrument is equipped with precision small transformer)


Specification

• Measurement Accuracy:2% plus or minus 2 words
• Measuring Range:AC voltage: AC80-300V AC current: AC0.0-50A
• Power Consumption:< 0.2VA
• Measurement Speed: about 2 times per second

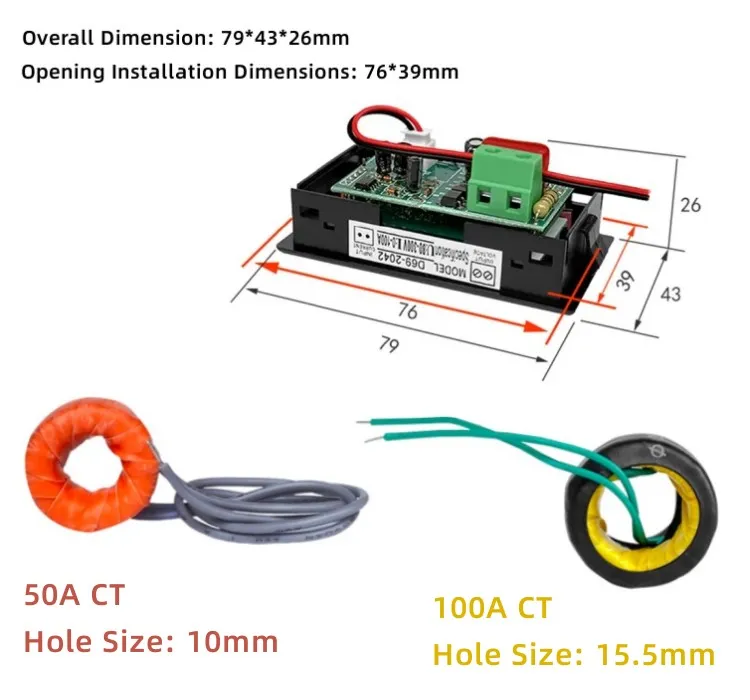

• Overall Dimension: 79 * 43 * 32mm
• Hole Size: 76 * 39mm

Extreme operating conditions:

• Working Temperature:– 10~+50 ºC
• Working Humidity:10~80% (no condensation)
• Working Pressure:80~106kPa
• Sunlight Exposure:no direct exposure
