DC-DC Buck Converter Step Down Module Constant Current LED Driver ( 300W 20A)

The 300W 20A DC-DC Buck Converter Step Down Module is a handy power
accessory board that allows you to fine-tune the amount of power your
project receives. This converter can take an input voltage of anywhere
from 6V to 40V DC(10V to 40V is suggested) which can then be regulated
to an output voltage between 1.2V to 36V DC. With a wide input voltage
range from 6V to 40V, the step-down converter can accurately adjust the
output voltage and current. the bIt is designed with a 75V/80A large

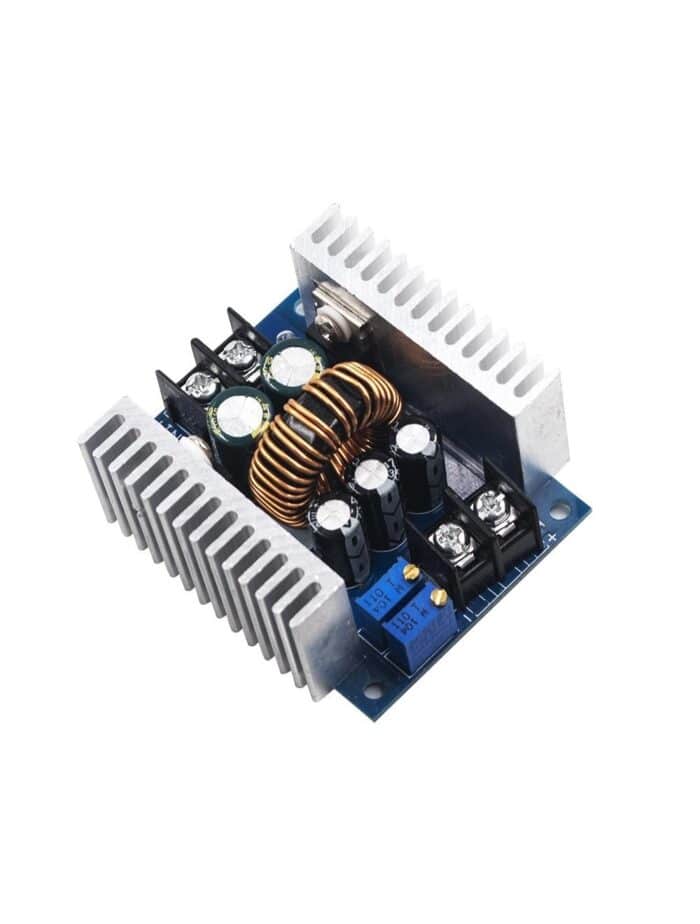

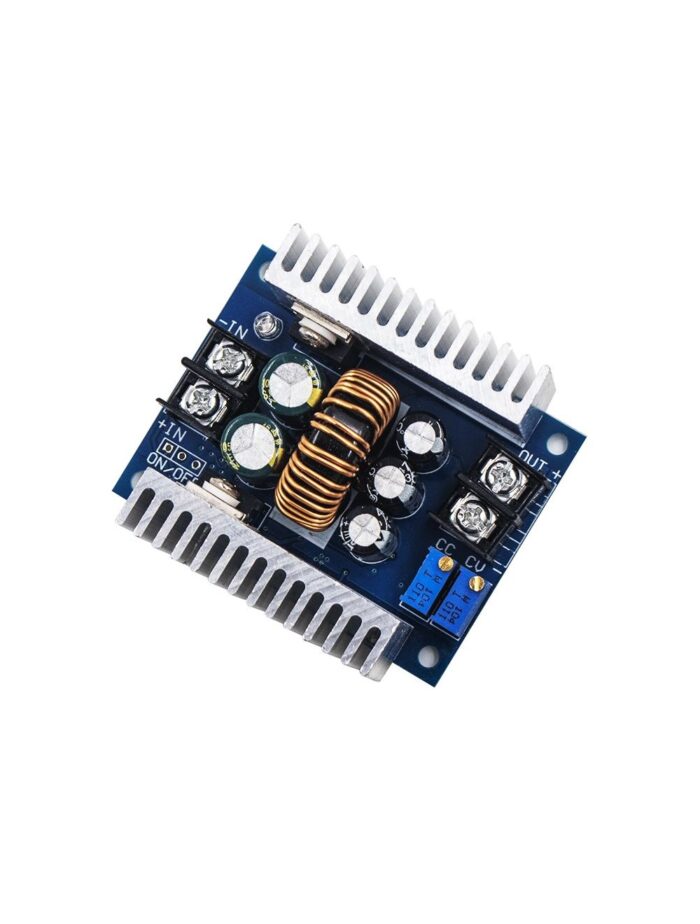

current dual MOS tube. The buck module has 2 heat sink that could
enhance heat dissipation. Wiring is convenient with these large current
30A screw terminals. The efficiency can be up to 96%, measured at 20A,
converting 24V to 12V.

Note: When there is a big difference between input and output voltage, please decrease power and current.

Specification:

• Input Voltage: 6V to 40V DC(10V to 40V is suggested)
• Output Voltage: 1.2V to 36V DC
• Output Current: 20A(max.), 15A(suggested)
• Efficiency: 95%(24V to 12V, 20A)
• Output Ripple: ≤50mV
• Wiring Method: Terminal
• Short Circuit Protection: Self-recovery(cannot short circuit for a long time)
• Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06″

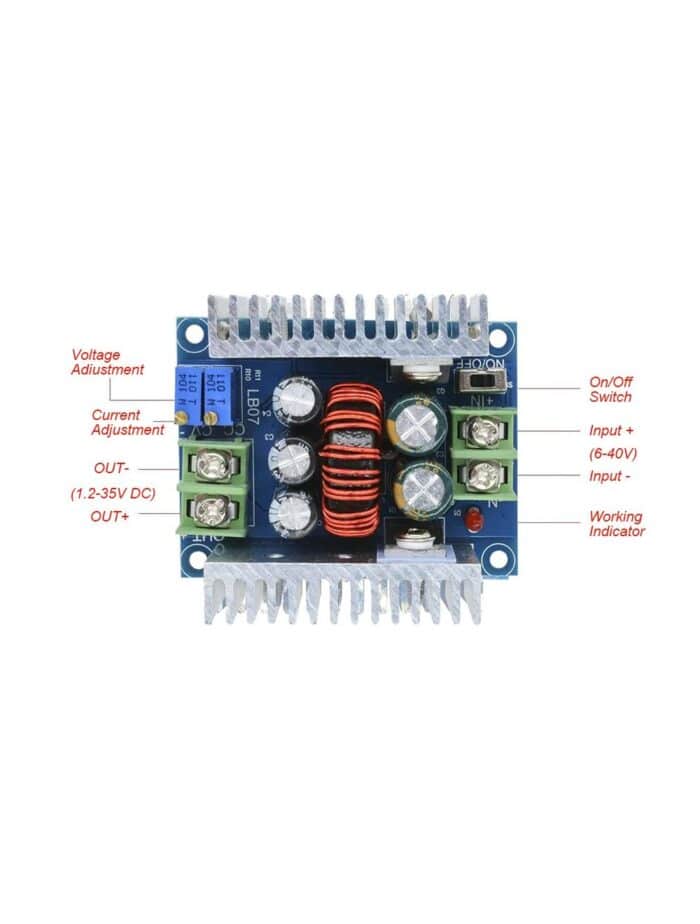

Pin Description:

• VO+: Output positive
• VO-: Output negative
• +IN: Input positive
• -IN : Input negative
• CV: Output voltage adjustment
• CC: Output current adjustment
• EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
  When input and output is common grounded, no-load CV output constant voltage, CC output constant current

  Package Include:
  1 x 300W 20A Constant Current Adjustable Buck Converter Step-Down Voltage Module

No Guarantee No Warranty
Product image is for reference purpose only.
