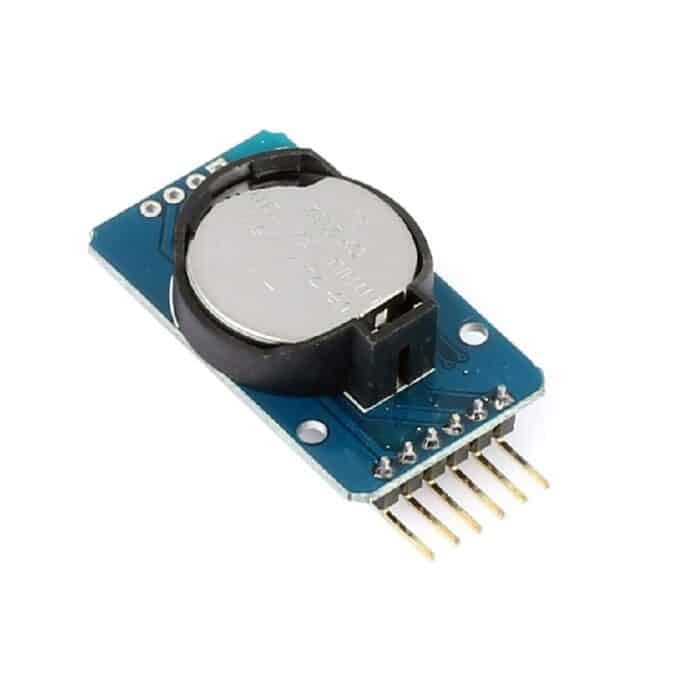

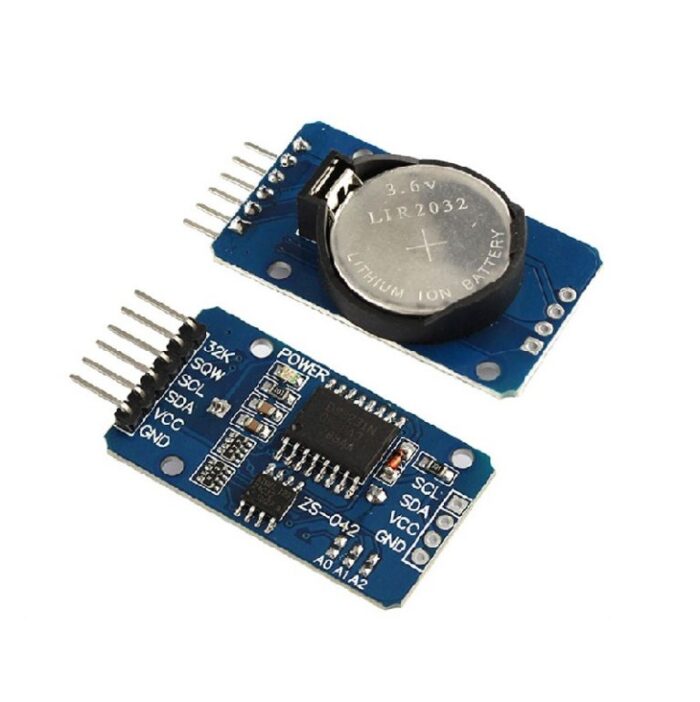

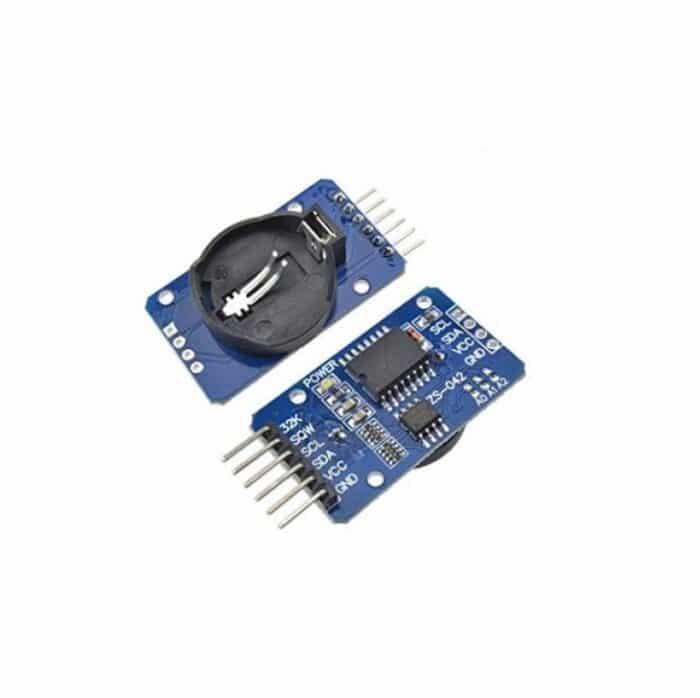

DS3231 Real Time Clock (RTC) Module

DS3231 Real Time Clock-RTC-Module

DS3231 RTC is a Precise Real-Time Clock Module with 32Kbit EEPROM and a built-in 10-bit temperature sensor having a resolution of 0.25C. The DS3231 RTC module Precise Real-Time Clock Module is a low-cost, extremely accurate I²C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input and maintains accurate timekeeping when the main power to the device is interrupted. Featured by Sharvi Electronics The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The ds3231 Arduino is available in commercial and industrial temperature ranges and is offered in a 16-pin, 300-mil SO package.

Features/Specs:

• Operating Voltage: 2.7~5.5VDC
• Voltage Supply for RTC: 2.2~5.5VDC
• Battery Holder: 2032 Coin Battery.
• I2C interface: Fast (400kHz) I2C Interface.
• EEPROM: AT24C32 32Kbit Serial I2C.
• Operating Temperature Range: -40~85°C
• Digital Temp Sensor Output: 10 bit, ±3°C Accuracy and 0.25C resolution.
• Time and Date Format: (Time: HH: MM: SS (12/24 hr))/ (Date Format: YY-MM-DD-dd.)
• Accuracy: ±2ppm from 0°C to +40°C./±3.5ppm from -40°C to +85°C.
• Two Time-of-Day Alarms.
• Digital Temp Sensor Output.
• Register for Aging Trim.
• DS 3231 RTC with 2032 Battery Holder.
• Highly Accurate RTC Completely Manages All Timekeeping Functions.
• Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year, with Leap-Year Compensation Valid Up to 2100.
• Configurable I2C device Address for AT24C32 using SMD jumpers on PCB (A0, A1, A2).
• Programmable Square-Wave Output Signal.
• Battery-Backup Input for Continuous Timekeeping.
• Low Power Operation Extends Battery-Backup Run Time
• Dimensions in: mm
• Length: 38mm
• Width: 22mm
• Height: 14mm

Package Includes:

• 1 x DS3231 Real Time Clock-RTC-Module

Datasheet: DS3231 RTC-Module
Useful Links: Arduino Library
Example Code

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
