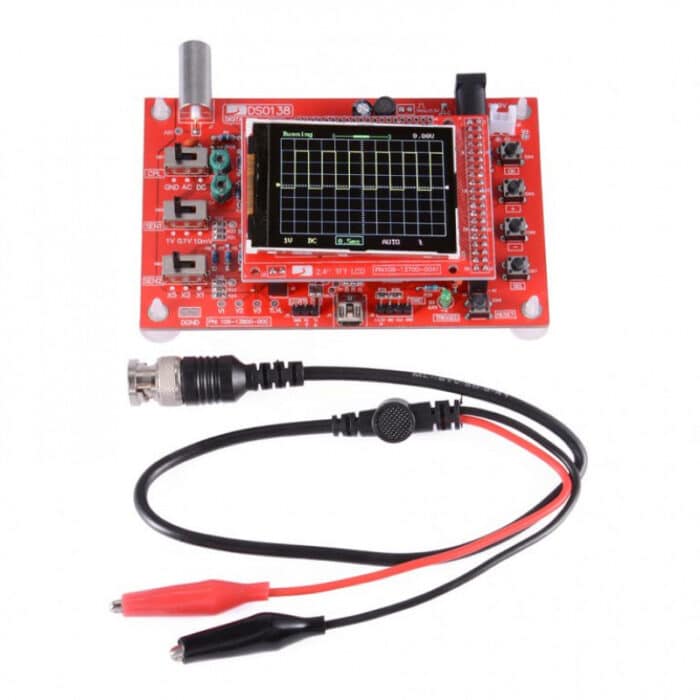

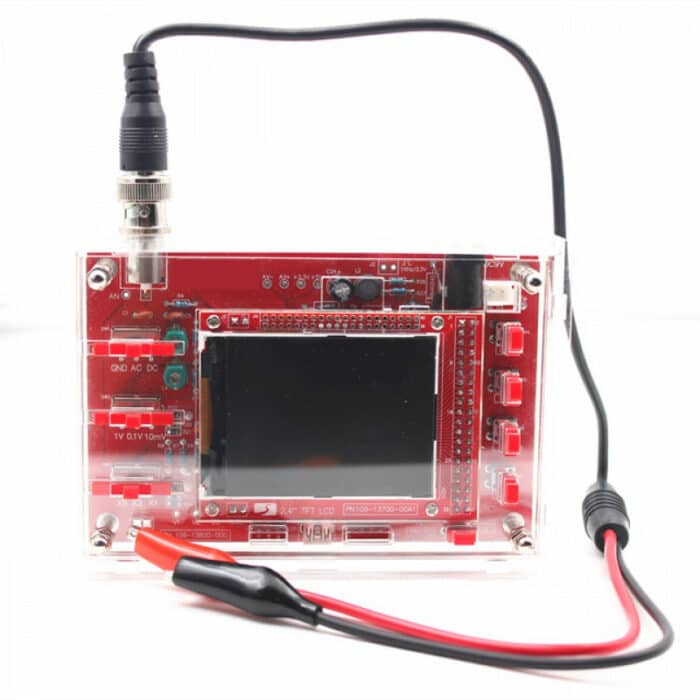

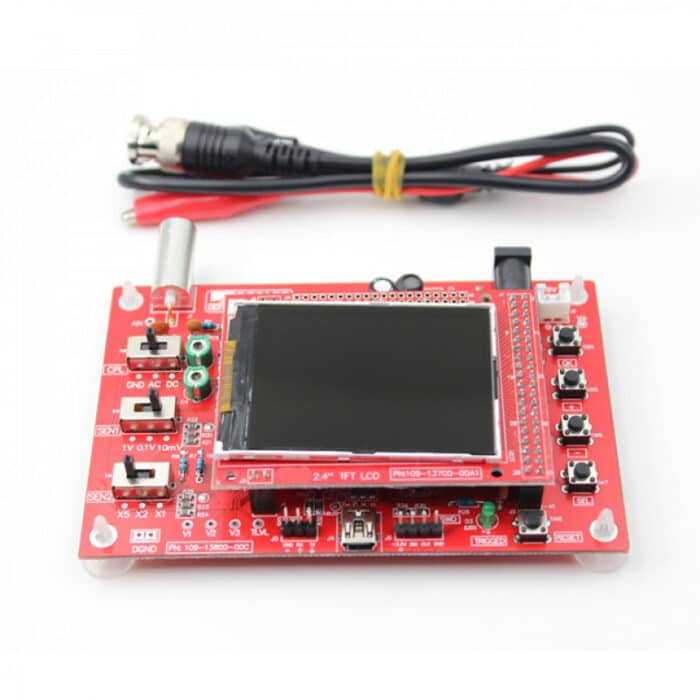

This is DSO138 2.4″ TFT Handheld Pocket-size Digital Oscilloscope
Kit. This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor
and with 2.4-inch TFT screen.
It’s easy and reliable for circuit operation. It can display
frequency, period, pulse width, duty ratio,
MAX./MIN./AVG./Peak-Peak/virtual values.
This boost converter is a great match for DSO138 oscilloscope kit. It
can be connected directly to the DSO138 motherboard(not included), make
DSO138 oscilloscope to be a portable oscilloscope for better use.
Features :
- This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a
2.4-inch color TFT display screen, can be used as the ARM test
development board. - Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
- Adjustable vertical displacement, and with instructions.
- With automatic, regular and one-shot modes, easy to capture the moment waveform.
- Available rising or falling edge trigger.
- Observable previous trigger waveform (negative delay).
- Can freeze at any time waveform display (the HOLD function).
- Comes 1Hz /3.3V square wave test signal source.
- With waveform parameter digital display, including frequency,
period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual
values.
Input Supply Voltage (VDC) |
9 |
Impedance (Ω) |
1MΩ |
Maximum Real-time Sampling Rate |
1Msps |
Sampling Buffer Depth |
1024 bytes |
Analog Bandwidth |
0-200KHz |
Vertical Sensitivity |
10mV / Div – 5V / Div (1-2-5 progressive manner) |
Accuracy |
12Bit |
Coupling Modes |
DC / AC / GND |
The Horizontal Time Base Range |
10μs / Div – 50s / Div (1-2-5 progressive manner) |
Length (mm) |
118 |
Width (mm) |
77 |
Height (mm) |
19 |
Weight (gm) |
130 |
Shipment Weight |
0.14 kg |
Shipment Dimensions |
17 × 12 × 3 cm |
