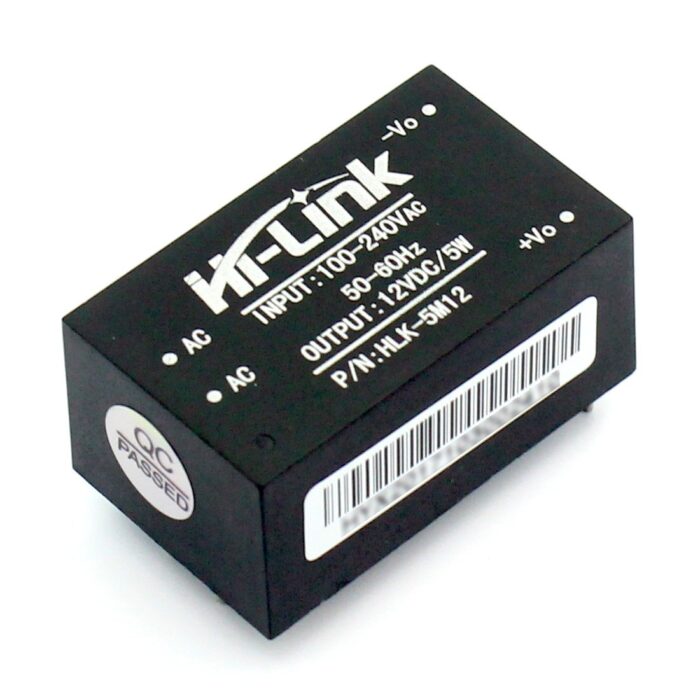

Hi Link HLK 5M12 12V/5W Switch Power Supply Module

HLK-5M05 12V/5W Switch Power Supply Module is plastic enclosed PCB
mounted isolated switching step-down power supply module. It can supply
12V DC from  120V AC – 230V AC and has a power rating of 5 Watt. This
makes it perfect for small projects that need a 12 volt supply from
mains. This power supply module replaces lots of parts from the
traditional power supply like diodes, voltage regulator and
transformers. Therefore there are many advantages for these modules,
such as low-temperature rise, low power, high efficiency, high
reliability, high-security isolation etc.

This Power Supply Module voltage source is a switching source, so you
do not have to worry about fluctuations in voltage grid. It is designed
to be mounted on the PCB and is the ideal solution to power pads that
you take. It is widely used in a smart home, automation and control,
communication equipment, instrumentation and other industries.

Features:

1. Meet UL, CE requirements,
2. Ultra-thin, ultra-small
3. All voltage input (AC: 90 ~ 264V)
4. Low ripple and low noise
5. Output overload and short circuit protection
6. High efficiency, high power density
7. The product is designed to meet the requirements of EMC and Safety Test
8. Low power consumption, environmental protection, no-load loss <0.1W

Environmental conditions:

1. Technical indicators: Single bit
2. Working temperature: – 20-60 +degree
3. Storage temperature: + 80-40 -degree
4. Relative humidity: 5-95%
5. The cooling way: Natural cooling
6. The atmospheric pressure: 80-106Kpa
7. The altitude: 2000M or less.

No Guarantee No Warranty
Product image is for reference purpose only.
