Nokia 5110 Screen 84×48 LCD Display Module SPI interface

Nokia

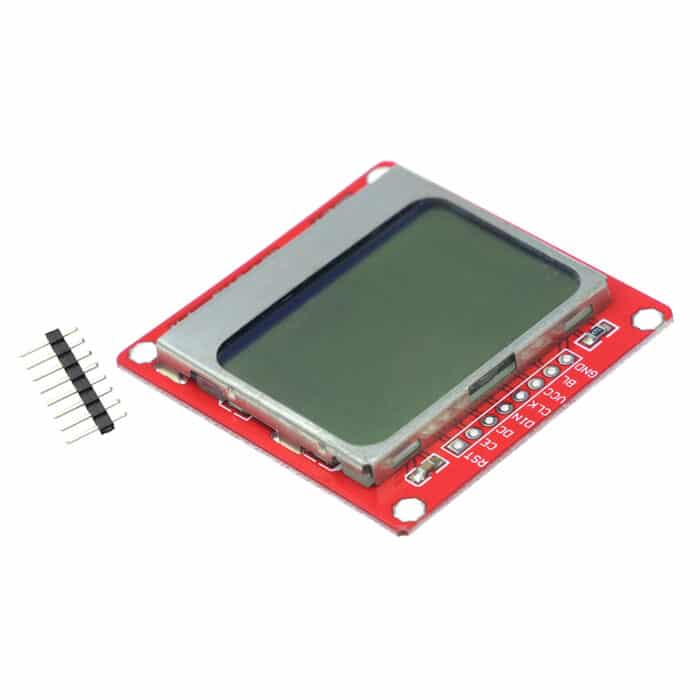

5110 Display module with (84×48) monochrome pixels which is capable of
displaying alphanumeric characters, draw lines and other shapes and even
displays a bitmap image.The module comes with the PCD8544 interface IC
which makes this module easy to use with low-level
microcontrollers.Display that is better than the standard 16*2 LCD to
showcase some decent graphics or custom characters.

Features:

• It communicates through SPI protocol and hence does not require more pins

• The module also has a readily available library for Arduino which makes it ideal even for novice programmers

• Can be easily interfaced with Arduino

• Supports decent graphics of bitmap images

• Available in Green and Blue Backlight

Specifications:

• Operating Voltage: 2.7V to 3.3V

• Current consumption: 6mA

• Consists of 48 rows and 84 columns (84×48) monochrome pixels

• interface: serial SPI interface

• Consists of PCD8544 interface chip for easy interfacing

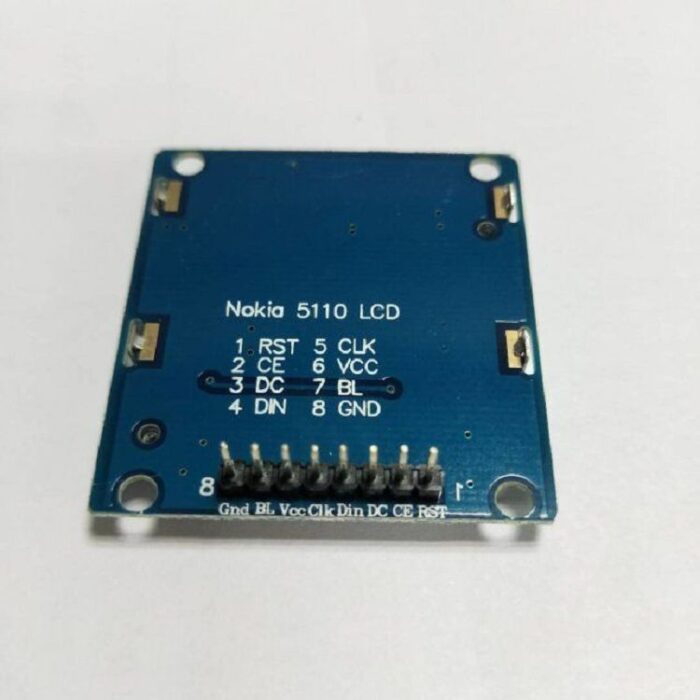

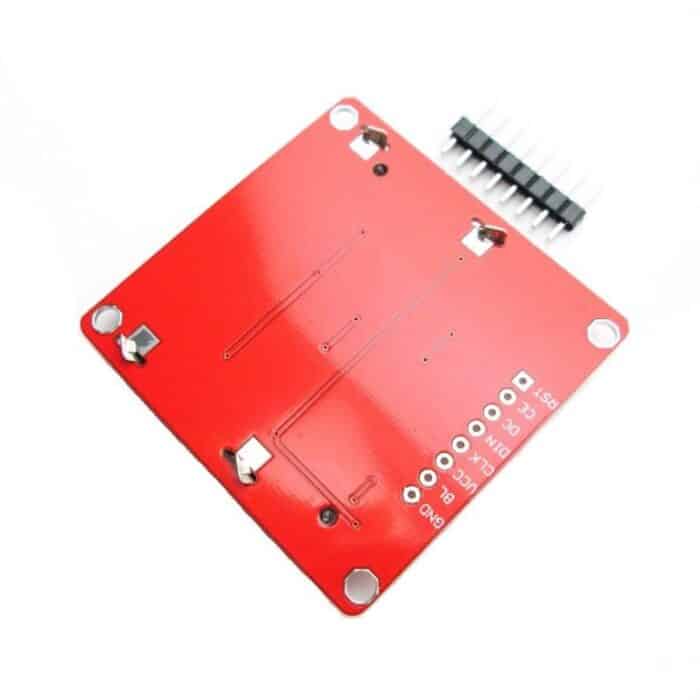

Pinouts:​

• RST – reset ,This pin resets the module. It an active low pin (resets when 0V is provided)

• CE – chip select ,This pin is made low (0V) to select this particular display when more than one SPI peripherals are used.

• DC – data / command selection ,This pin is used to switch between Data mode (high) and Command mode (low)

• DIN – string Line data line ,This is the input pin (MOSI) through which serial instructions are sent

• CLK – serial clock line ,All SPI modules require a common clock, this clock source is supplied to this pin

• VCC –
  power input (3.3v and 5v can be, experimentally verified, no problem)
  ,This pin is used to power the display the supply voltage is from 2.7V
  to 3.3V

• BL – backlight control terminal ,This pin powers the backlight of the display (3.3V maximum).

• GND – ground,Connects to the ground of the circuit.

Applications:

• Comes with a backlight and hence can be used even in darker environment

• Can be used to create retro games using microcontroller

• Can be used to display alphanumeric characters and bitmap images

• Used in application where fancy graphics are required

• Requires only a maximum of 5 pins to operate hence I/O friendly

Package Includes:

• 1 x Nokia 5110 Display module

No Guarantee No Warranty
