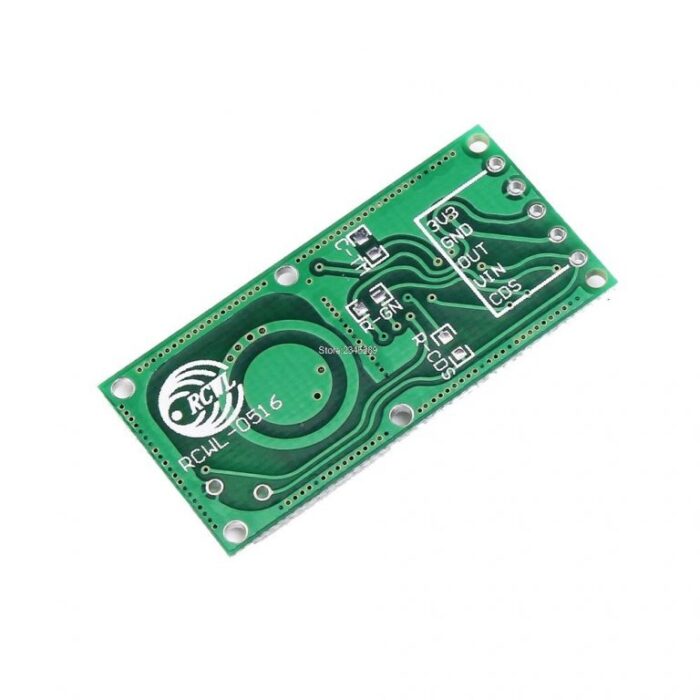

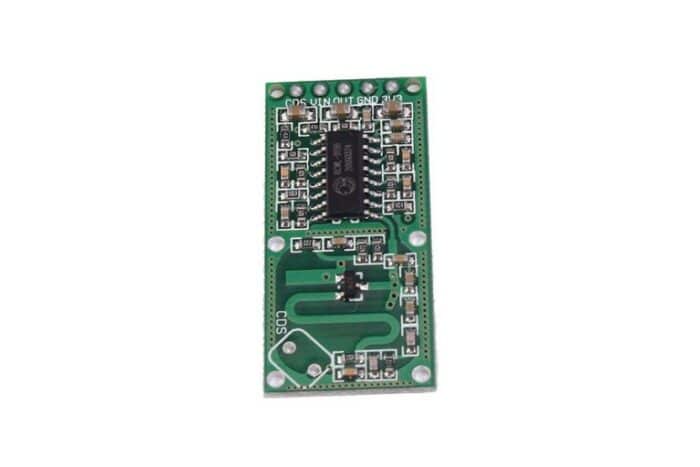

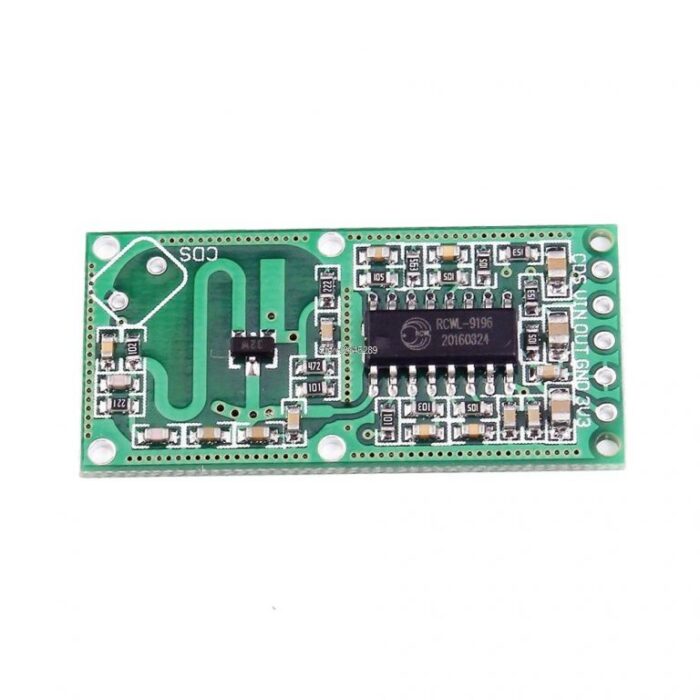

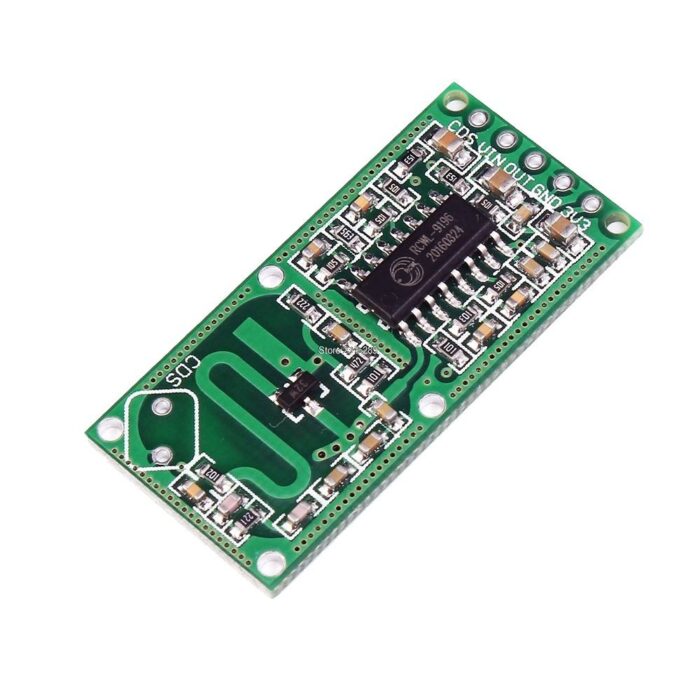

RCWL-0516 Microwave Radar Sensor

This mini doppler radar sensor module is equipped with supporting DC
4-28V wide voltage It will automatically continuously output the high
level TTL signal when there is motion. 360 degree no blind angle
detection and maximum 7m sensoring distance. It is perfect for DIY
microwave motion sensor light switch, human sensor toys, smart security
devices, etc.

Features:

• Operating Voltage: 4-28V
• Operating Current: 2.8mA (typical); 3mA (max)
• Detection Distance: 5-9m
• Transmitting Power: 20mW (typical); 30mW (max)
• Output Voltage: 3.2-3.4V
• Output Voltage Driving Capacity: 100mA
• Trigger Way: repeat trigger
• Output Control Low Level: 0V
• Output Control High Level: 3.3V
• Operating Temperature: -20~80 celsius
• Storage Temperature: -40~100 celsius
• Board Size: 35.9 X 17.3mm/1.41 X 0.68inch
