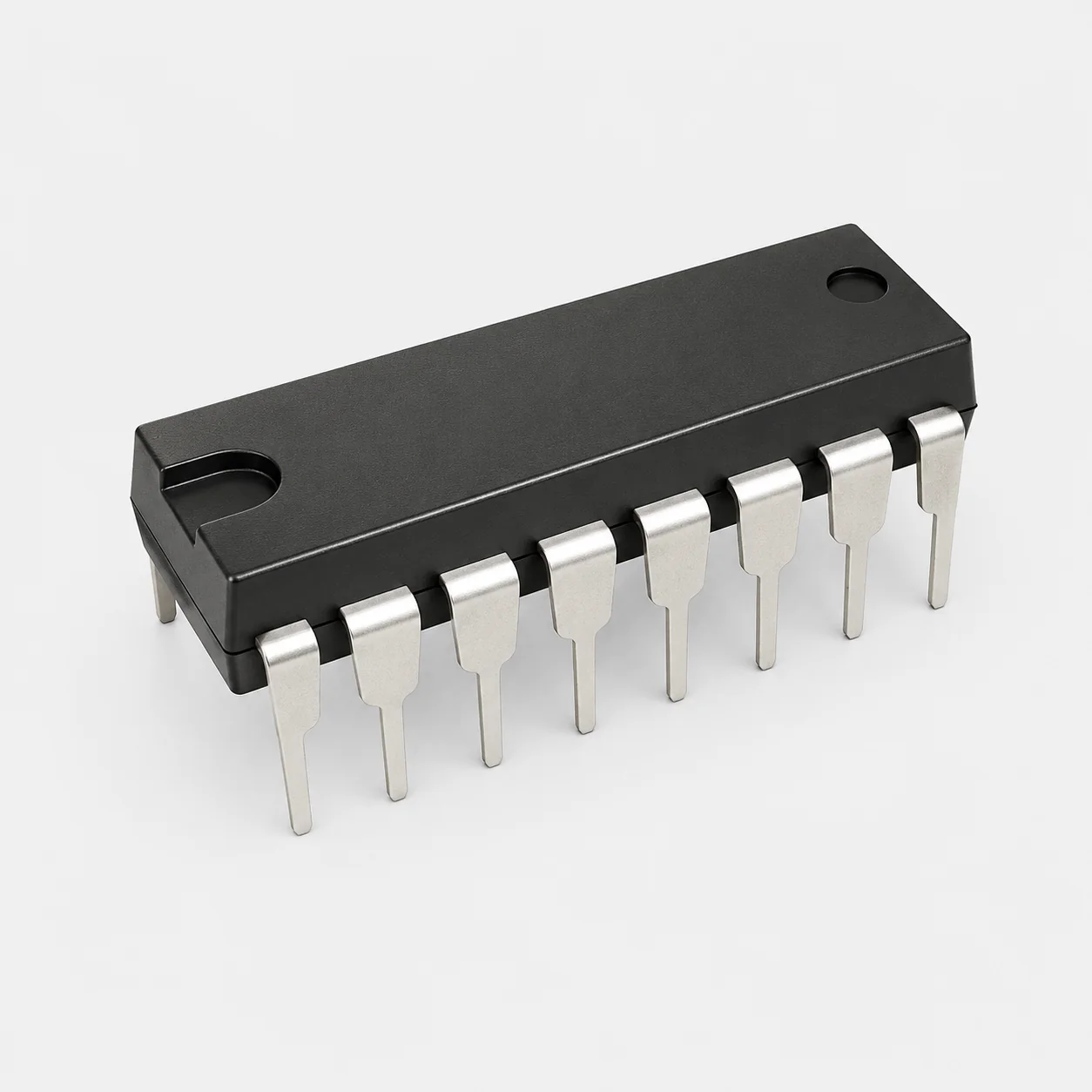

TI SG3524N Regulating Pulse Width Modulator IC – DIP-16 Package

SG3524N Texas Instruments Regulating Pulse-Width Modulator is a fixed-frequency PWM controller from Texas Instruments designed for switch-mode power supplies (SMPS), DC-DC converters, inverters, battery chargers, and industrial power control applications. It integrates an oscillator, error amplifier, voltage reference, PWM comparator, dead-time control, and dual alternating output transistors in a single DIP-16 package, enabling efficient and reliable power supply designs with minimal external components.

Features:

1. Fixed Frequency PWM Controller
2. Integrated 5V Precision Voltage Reference
3. Dual Alternating Push-Pull Outputs
4. Adjustable Dead-Time Control
5. Built-in Oscillator
6. Current Limiting Capability
7. Error Amplifier for Closed-Loop Regulation
8. Wide Supply Voltage Range
9. Low Standby Current
10. Suitable for Single-Ended and Push-Pull Converter Designs
11. DIP-16 Through-Hole Package
12. RoHS Compliant

Specifications:

Pin Configuration:

Package Includes:

1 x SG3524N Pulse-Width Modulator – DIP-16 Package
