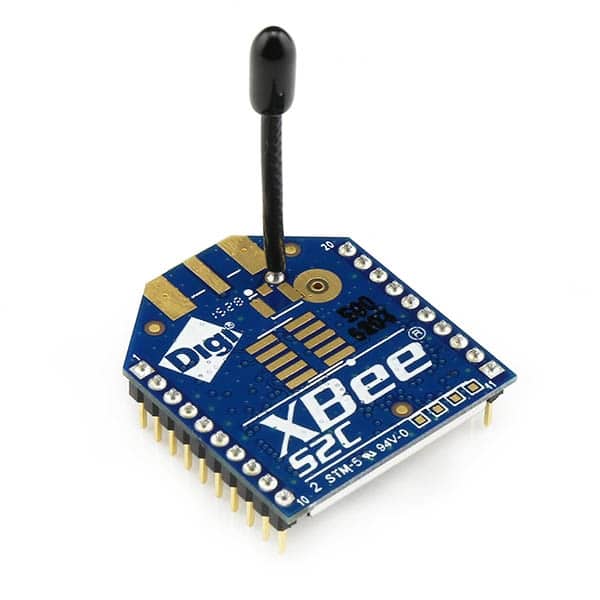

XBee S2 Module

This is the new 2.4GHz XBee XB24-BWIT-004 module from Digi. Series
2.5 improves on the power output and data protocol. These modules take
the 802.15.4 stack (the basis for Zigbee) and wrap it into a simple to
use serial command set. These modules allow a very reliable and simple
communication between microcontrollers, computers, systems, really
anything with a serial port! Point to point and multi-point networks are
supported.

Specifications:-

• 3.3V @ 40mA
• 250kbps Max data rate
• 2mW output (+3dBm)
• Built-in antenna
• Fully FCC certified
• 6 10-bit ADC input pins
• 8 digital IO pins
• 128-bit encryption
• Local or over-air configuration

AT or API command set
