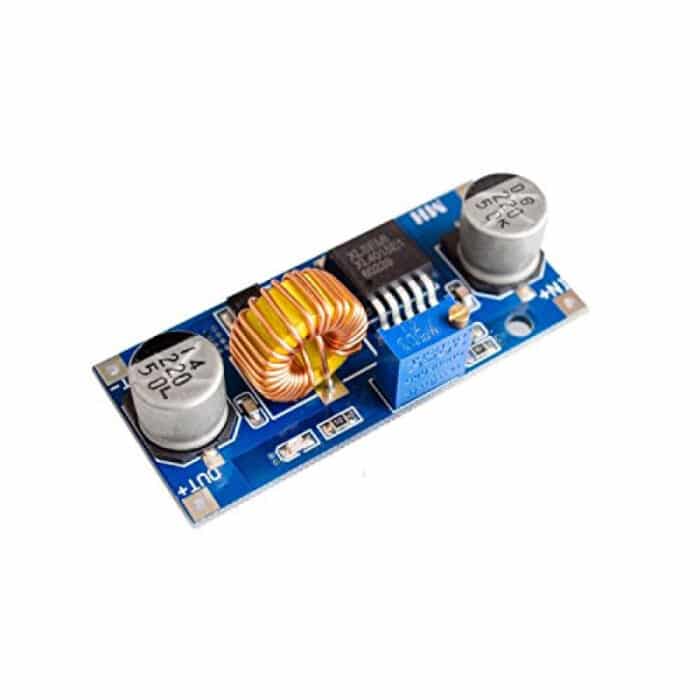

XL4015 – 5A DC-DC Adjustable Step Down Power Supply Module

XL4015
module is a 180 KHz fixed frequency PWM buck (step-down) DC/DC
module,capable of driving a 0-5A (Max) Adjustable load with high
efficiency, low ripple and excellent line and load regulation. Use as a
step-down modules with overcurrent protection capabilities.

This
module has adjustable output Voltage and Current. Can also be used as a
dedicated charger for Lithium Batteries (Li-Ion,LiPo) as it is capable
of CC CV

Specifications:-

• Input voltage range：4～38VDC(Note:input voltage not exceeding 38V)

• Output voltage range：1.25-36VDC adjustable

• Output current: 0-5A

• Output power: 75W

• High efficiency up to 96%

• Built in thermal shutdown function

• Built in current limit function

• Built in output short protection function

• Input reverse polarity protection: None (if required, high current diode in series with the input).

• L x W x H = 5.4*2.3*1.5 CM


Features:-

The
DC/DC buck module applications the input voltage is higher than the
output voltage of the buck field, such as battery, power transformer,
DIY adjustable regulated power supply, LCD Monitor and LCD TV，portable
instrument power supply，telecom/networking equipment,24V vehicle
notebook power supply,industrial equipment buck.

12V buck to 3.3V, 12V buck to 5V,  24V buck to 5V,24V buck to 12V,  36V buck to 24V etc.

* Product Images are shown for illustrative purposes only and may differ from actual product.
