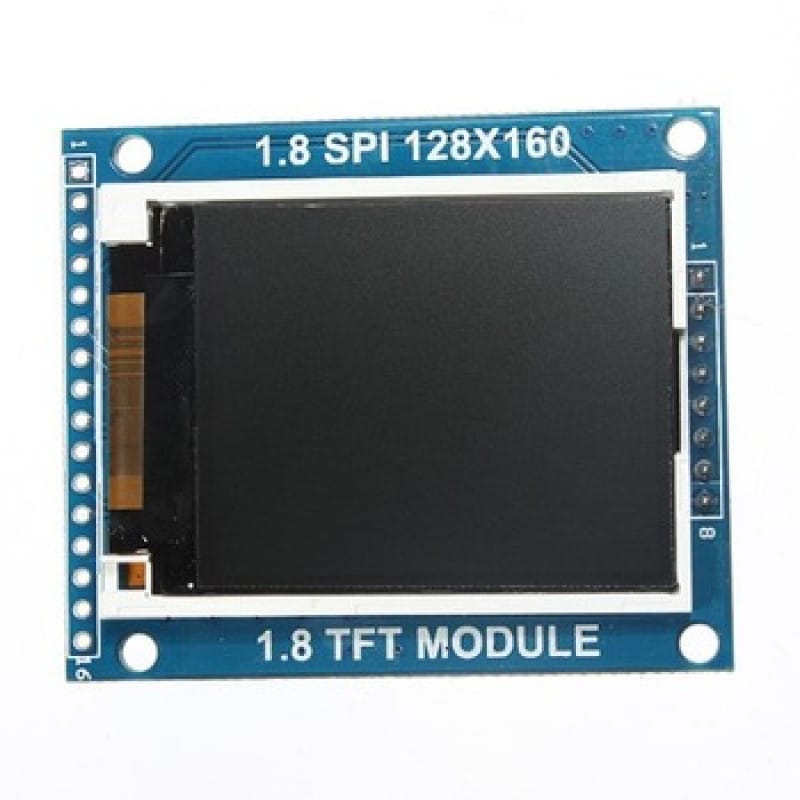

1.8 Inch SPI 128×160 TFT LCD Display Module for Arduino
lovely little display breakout is the best way to add a small, colorful
and bright display to any project. Since the display uses 4-wire SPI to
communicate and has its own pixel-addressable frame buffer, it can be
used with every kind of microcontroller. Even a very small one with low
memory and few pins available!
1.8 display has 128160 color pixels. Unlike the low cost Nokia 6110 and
similar LCD displays, which are CSTN type and thus have poor color and
slow refresh, this display is a true TFT! The TFT driver (ST7735R) can
display full 18-bit color (262,144 shades!).
the 1.8 Inch SPI 128160 TFT LCD Display Module will always come with
the same driver chip so there are no worries that your code will not
work from one to the other.
breakout has the TFT display soldered on (it uses a delicate
flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator
and a 3/5V level shifter so you can use it with 3.3V or 5V power and

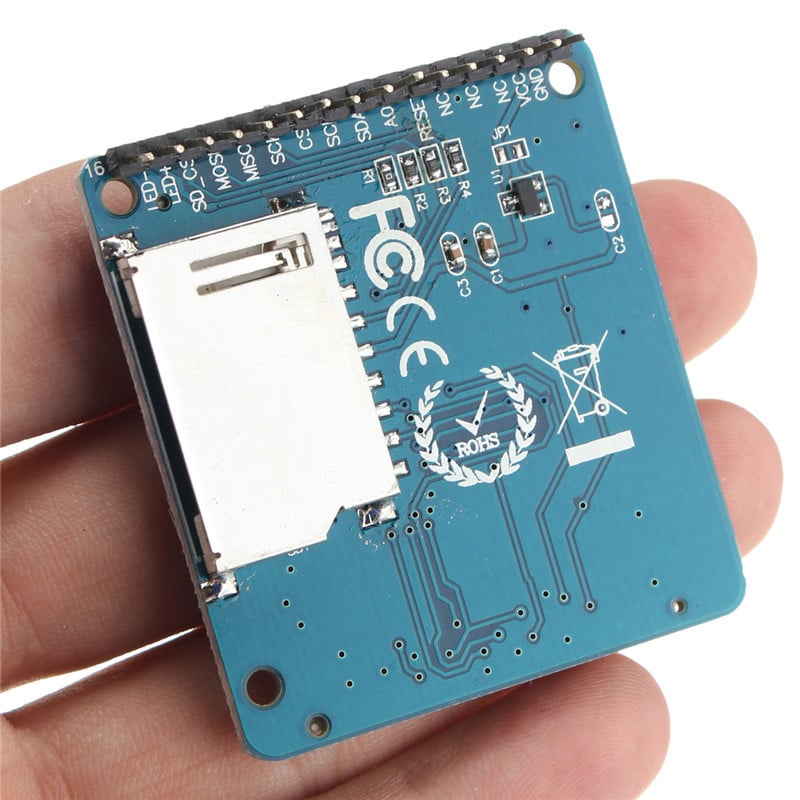

It features a micro SD card holder so you can easily load full color bitmaps from a FAT16/FAT32 formatted micro SD card.
- Compatible with the 3.3/5V operation voltage level.
- It comes with an SD card socket.
- Features Backlight Control Circuit
- SPI Serial bus-only require 4 IO least
- Compatible with QD-UTFT library for Arduino
No Guarantee No Warranty
Product image is for reference purpose only.
