The ISD1820 Recording Module
Voice Board is the real easy way to add Voice Recording (and Playback)
to your project. The Module can be operated directly by using the 3
Push-Buttons or with every microcontroller (ex. Arduino). A microphone
is implemented directly on the board, and you can connect any 8 Ohm
Speaker. Your recordings are saved even without power due to the
non-volatile storage on the ISD1820.
Voice Board is the real easy way to add Voice Recording (and Playback)
to your project. The Module can be operated directly by using the 3
Push-Buttons or with every microcontroller (ex. Arduino). A microphone
is implemented directly on the board, and you can connect any 8 Ohm
Speaker. Your recordings are saved even without power due to the
non-volatile storage on the ISD1820.
This
module uses the ISD1820 voice record and playback IC to record a single
voice message of up to 10 seconds in length. The recorded message is
stored in its specialised analogue flash memory that will keep the
message stored even when power is removed. The module includes an
electret microphone to record your message and push buttons allow for
record, partial playback, or full playback of the message. Header pins
allow for easy interface to a microcontroller and playback can be
controlled with just one digital pin.
module uses the ISD1820 voice record and playback IC to record a single
voice message of up to 10 seconds in length. The recorded message is
stored in its specialised analogue flash memory that will keep the
message stored even when power is removed. The module includes an
electret microphone to record your message and push buttons allow for
record, partial playback, or full playback of the message. Header pins
allow for easy interface to a microcontroller and playback can be
controlled with just one digital pin.
Specification and Features of ISD1820 Voice Recording Module :-
- The main chip: ISD1820.
- Dimensions : 43 x 34 x 11 (LxWxH) mm.
- The working voltage: DC 3V-5V.
- Loudspeaker: 8 Ohm, 0.5W.
- An easy to use 10 seconds of voice recording.
- High-quality, natural voice restored.
- Can be used as propaganda module.
- With looping, jog playback, single-pass play function.
- Available single-chip control.

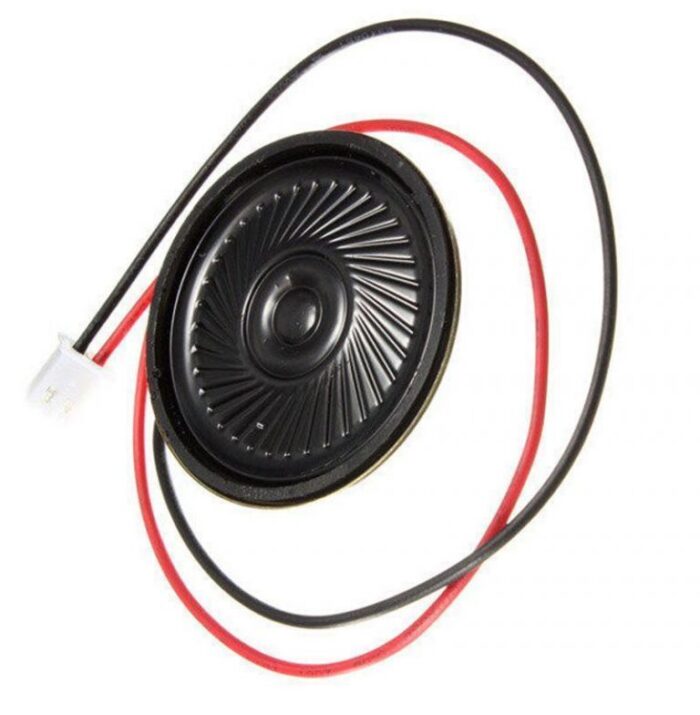

- This module can directly drive a small speaker 8 ohm 0.5W.
- Power supply : 3-5V, which can be accessed pin power.
- Audio recording control mode: the key to control or microcontroller, IO has drawn the line of control.
Buttons control audio recording method of operation :-
- REC button: record button, you can press and hold the recording, release the button to stop recording;
- RLAYE key: trigger mode playback, press will play this whole speech;
- PLAYL key: jog mode playback, press and hold until playback, release to stop playback;
- RPL Jumper: loop mode control, loop playback;
- FT Jumper: direct control, microphone voice through the speaker can playback.
