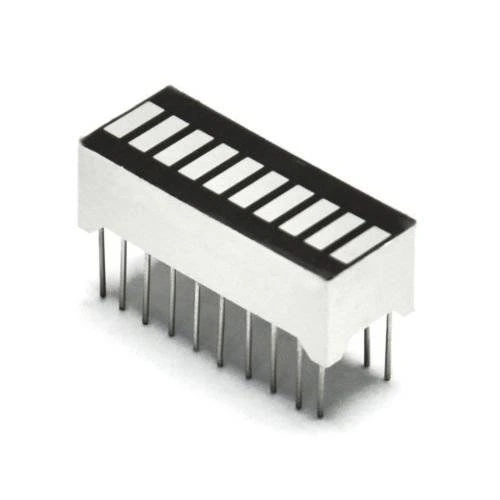

10 Segment Light Bar Graph LED Display ( Red Color)

10 Segment Light Bar Graph LED Display

LED Bar Graph is an LED array, which is used to connect with an electronic circuit or microcontroller. It’s easy to connect an LED bar graph with the circuit like connecting 10 individual LEDs with 10 output pins. Generally, we can use the LED bar graph as a Battery level Indicator, Audio equipment, and Industrial Control panels. There are many other applications of LED bar graphs.

Features/Specs:

• 10 LEDs with individual control
• High Luster
• High Intensity
• Economically priced
• Breadboard or Perf board friendly
• RoHS Compliant
• Wide viewing angle
• Forward Current: 20mA
• Forward Voltage: 2.0V to 2.2V (maximum)
• Luminous Intensity: 60mcd
• Wavelength: 630nm
• Operating Temperature: -25 deg C to 85 deg C
• Storage Temperature: -30 deg C to 85 deg C
• Soldering Temperature: 260 deg C for 5sec
• Color: Red

Note: Product Images are shown for illustrative purposes only and may differ from actual product.
