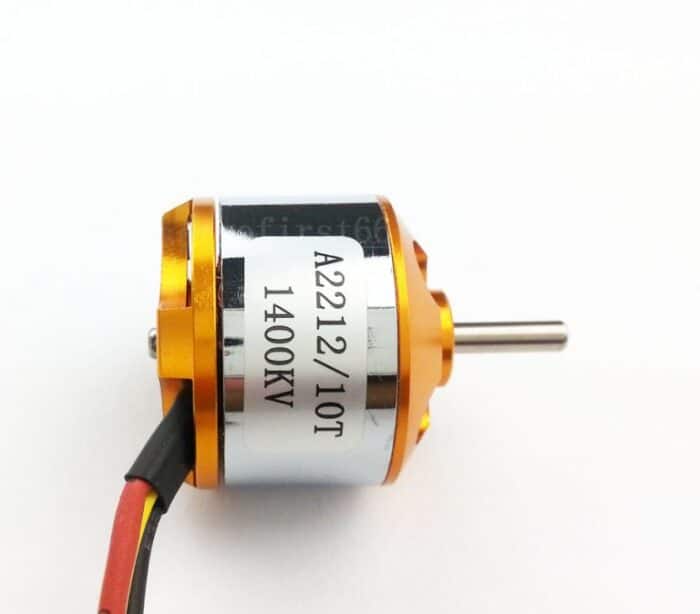

1400KV BLDC Brushless Motor

A2212 is a brushless outrunner dc
motor specifically made to power Quadcopters and Multirotors. It is a
1400kV motor. It provides high performance, super power and brilliant
efficiency. These motors are perfect for medium size quadcopters with 8
inch to 10 inch propellers. Use this to build powerful and efficient
quadcopters.

Perfect with our F450 quadcopter frame. Our 30A ESCs can be used to drive the motor.

Specifications:-

• KV: 1400

• No load Current : 10 V : 0.5 A.

• Current Capacity: 12A/60s

• No Load Current @ 10V: 0.5A

• No. Of Cells: 2-3 Li-Poly

• Motor Dimensions: 27.5 x 30mm

• Shaft Diameter: 934;3.17mm

• Shaft diameter : 3.175mm.

• Minimum ESC Specification: 18A (30A Suggested)

• Thrust @ 3S with 1045 propeller: 1000gms approx

• Thrust @ 3S with 0945 propeller: 650gms approx

• Thrust @ 3S with 0845 propeller: 550gms approx
