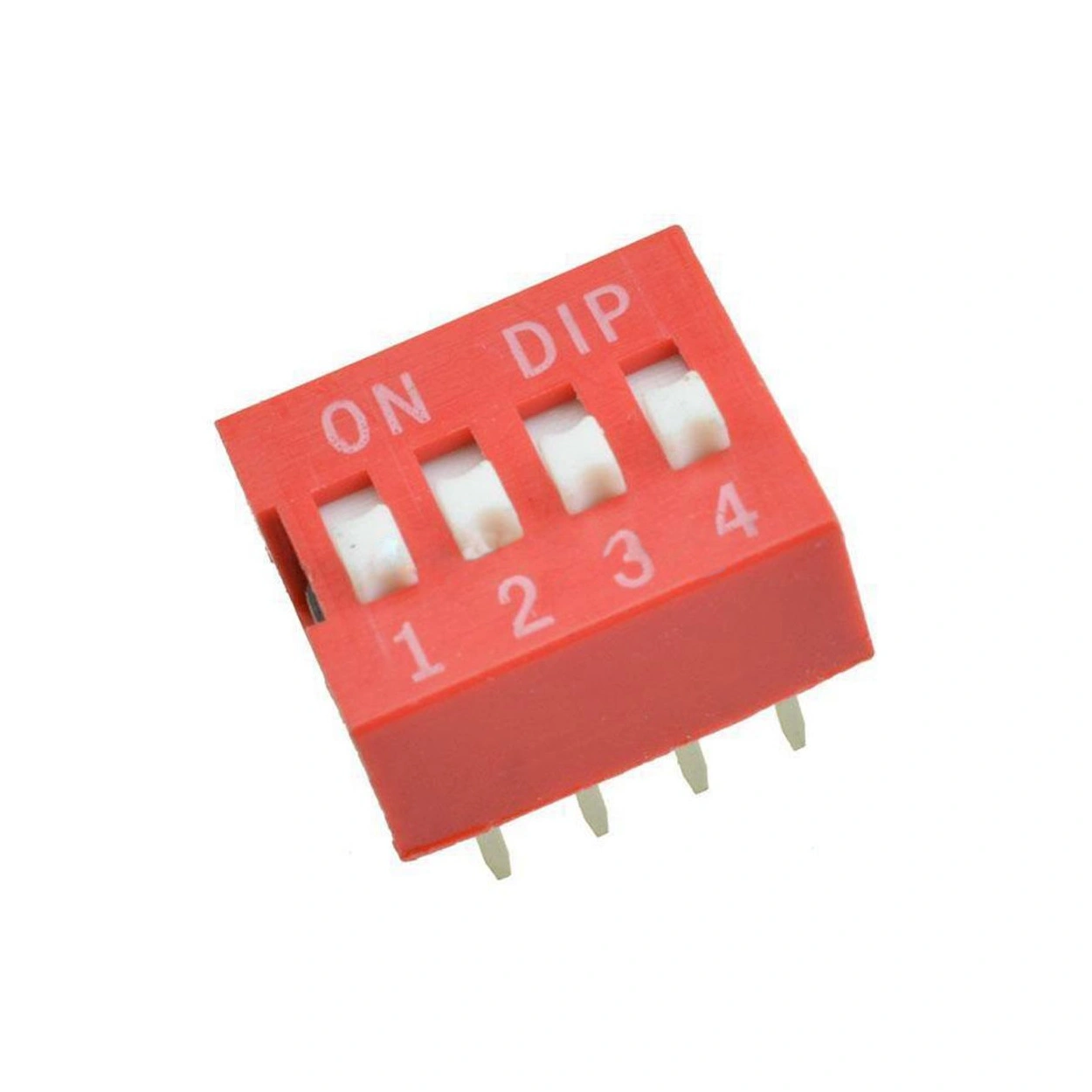

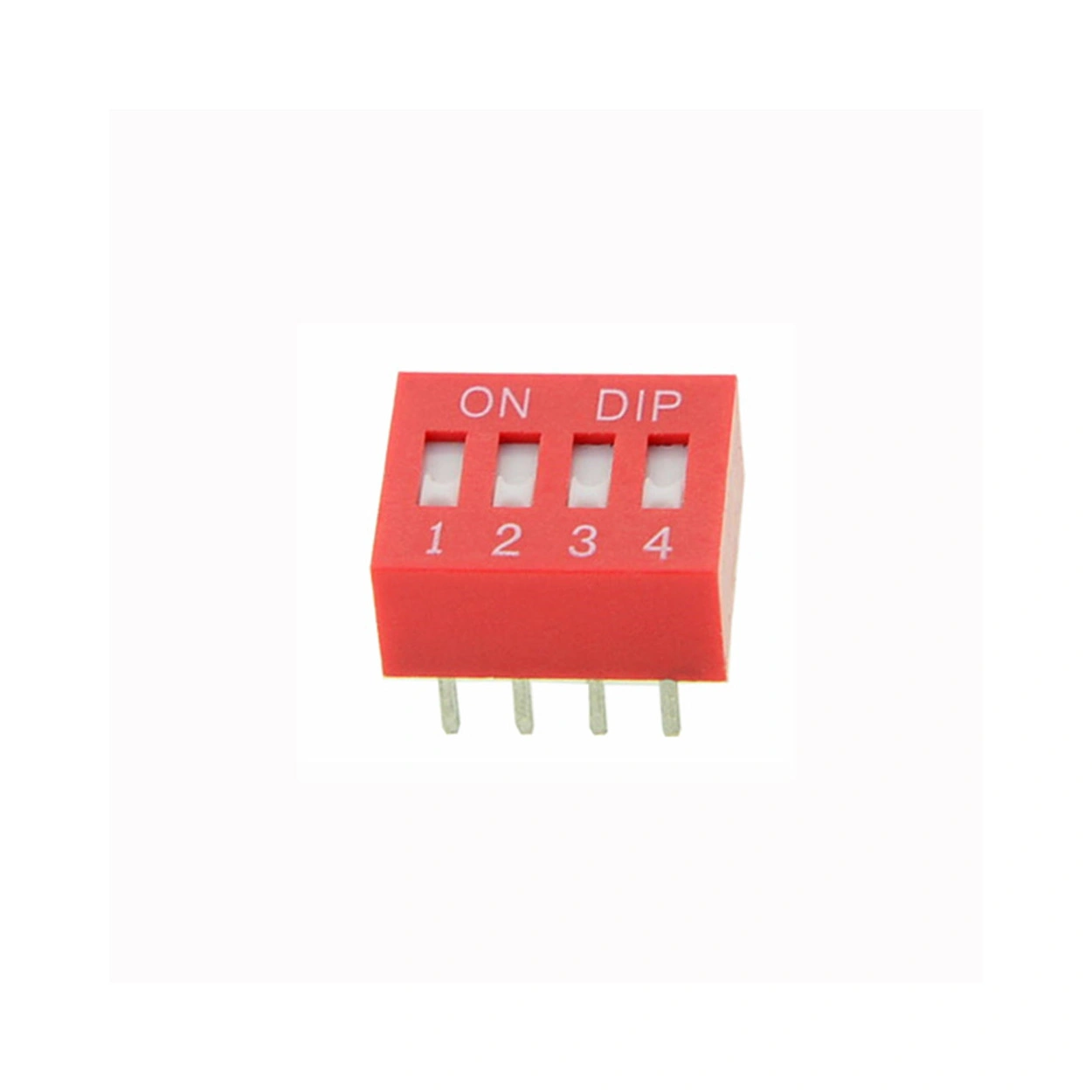

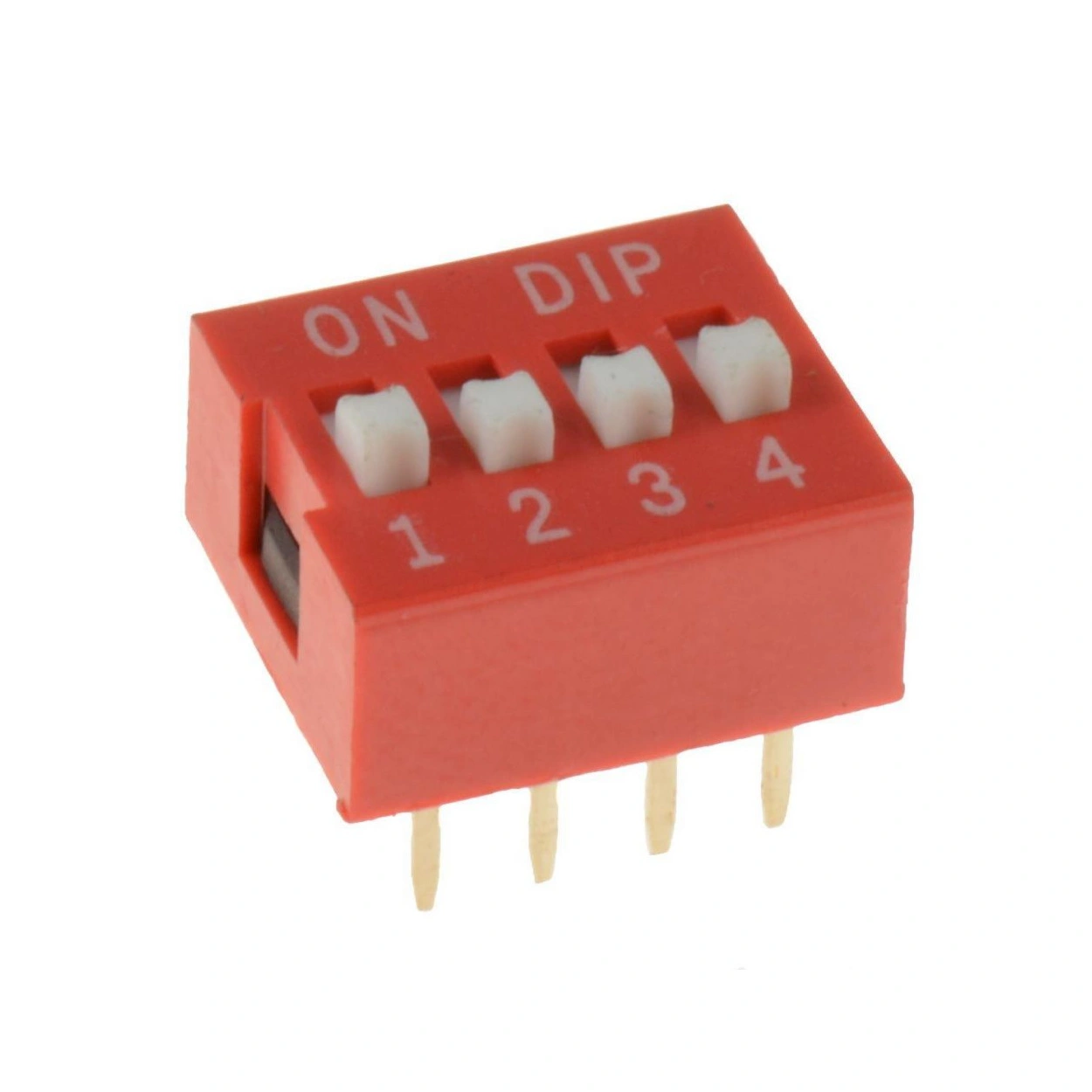

DIP Switch – 4 way

Description:

This is a 4 way DIP Switch. Basically, it is just 4 switches in one package. Each switch has two terminals and the contact between them closes everytime the switch is put to the On position. It comes with a 0.1″(2.54 mm) pitch and can be used on general purpose prototyping boards and breadboards. DIP Switches are great for taking settings, codes, addresses, etc.

Features of 4 Way DIP Switch

·         Number of Pins: 4

·         No of Position: 2

·         Pin Spacing: 2.54 mm

·         Pin Type:  DIP, PCB Mounted

·         Switch Type: Slide Type, SPST

·         Color: Red & White

Specifications of 4 Way DIP Switch

·         Max Operating Voltage: 50 Volts DC

·         Max Current Capacity: 100ma DC

·         Max Switching: 0.8 watt

·         Contact Resistance <100mohm

·         Life Expectancy: 1000 operations

·         Operating Temperature: -20 to 80C

Package Includes

1 x DIP switch 4 Way
