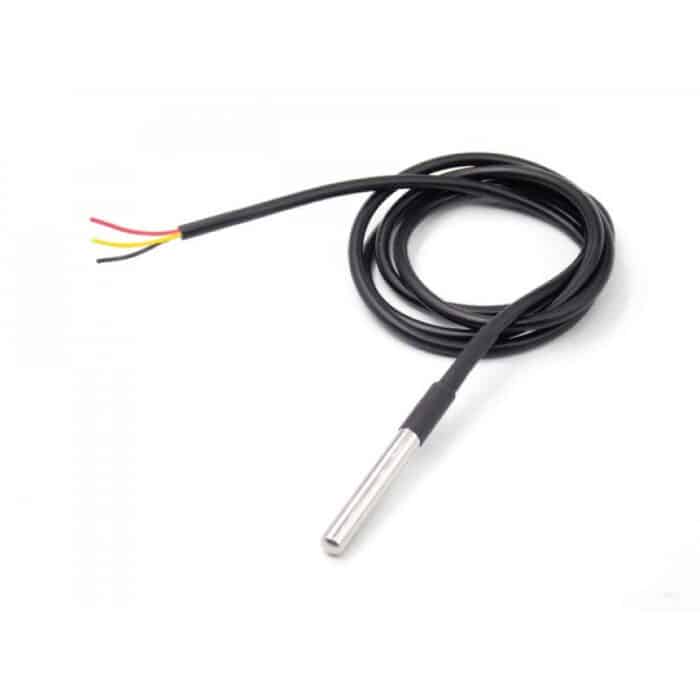

DS18B20 Water Proof Temperature Probe – Black (1m)

This is the DS18B20 Water Proof Temperature Probe – Black (1m) which is based on the DS18B20 sensor.

It is very handy for when you
need to measure something far away, or in wet conditions. Because they
are digital, you don’t get any signal degradation even over a long
distance.

These 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter.

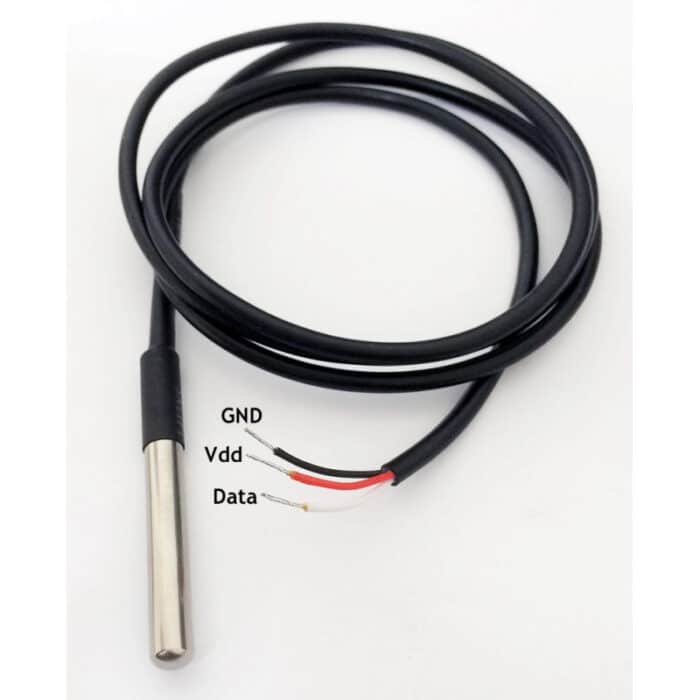

Wired connection

Red: VCC/VDD
Yellow/White: DATA
Black: GND

(Note that except price and quality all other parameters including working principle, functionality, etc. are same)

Features :

1. Each pin uses a heat-shrinkable tube to prevent short circuit, internal sealing glue.
2. Stainless steel tube encapsulation waterproof moistureproof prevents rust.
3. Stainless steel tube 6mm diameter by 30mm long.
4. Contains DS18B20 temperature sensor.
5. Uses 1-Wire interface- requires only one digital pin for communication.
6. Unique 64 bit ID burned into the chip.
7. Multiple sensors can share one pin.
8. Temperature-limit alarm system.
9. Without the external components, the unique single bus.

Package Includes :

1 x Waterproof Digital Thermal Probe DS18B20 1 meter cable.
