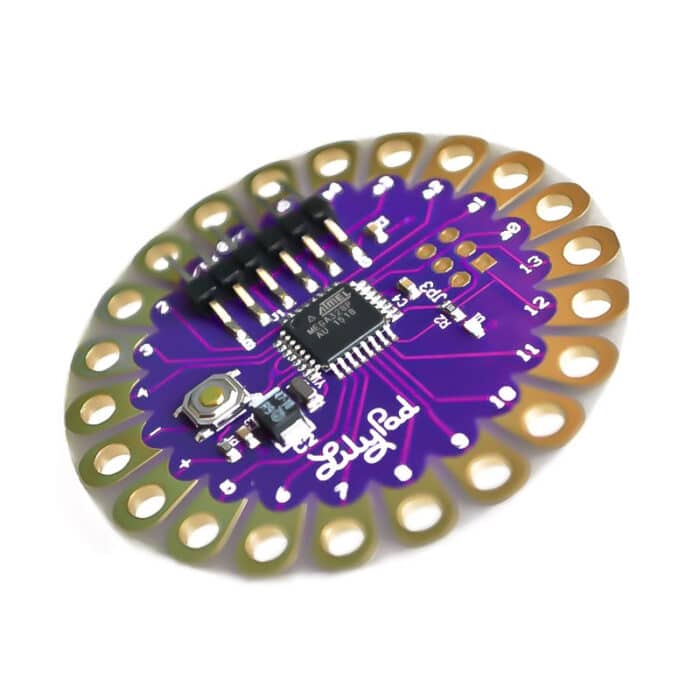

Lilypad Arduino 328 Main Board Atmega328P 16M

The LilyPad 328 ATmega328P Main
Board 16M is an Arduino-program micro-controller design to be easily
integrated into e-textiles and wearable projects. It offers the same
functionality you find in other Arduino boards, in a lightweight, round
package design to minimize snagging and profile. With wide tabs that can
be sewn down and connect with conductive thread.

The
LilyPad Arduino consists of an ATmega328 with the Arduino bootloader
and a minimum number of external components to keep it as small (and as
simple) as possible.

This
board will run from 2V to 5V and offers large pin-out holes that make
it easy to sew and connect. Each of these pins, with the exception of
(+) and (-), can control an attached input or output device (like a
light, motor, or switch).

Each
LilyPad was creatively designed to have large connecting pads to allow
them to be sewn into clothing. Various input, output, power, and sensor
boards are available. They’re even washable!

Specifications & Features :-

• Microcontroller: ATmega168 or ATmega328V
• Operating Voltage: 2.7-5.5 V
• Digital I/O Pins: 14
• PWM Channels: 6
• Analog Input Channels: 6
• DC Current per I/O Pin: 40 mA
• Board will run from 2V to 5V.
• The latest version of the LilyPad supports automatic reset for even easier programming.
• The back side of the LilyPad is now completely flat!
• We now use a surface mount programming connector to keep the header from poking through.
• This version of the LilyPad now uses the new ATmega328 at 8MHz.
• Arduino 0016 supports the Pro Mini Arduino 328/8MHz/16MHZ.
• Use this setting when using this new LilyPad 328.

No Guarantee No Warranty
