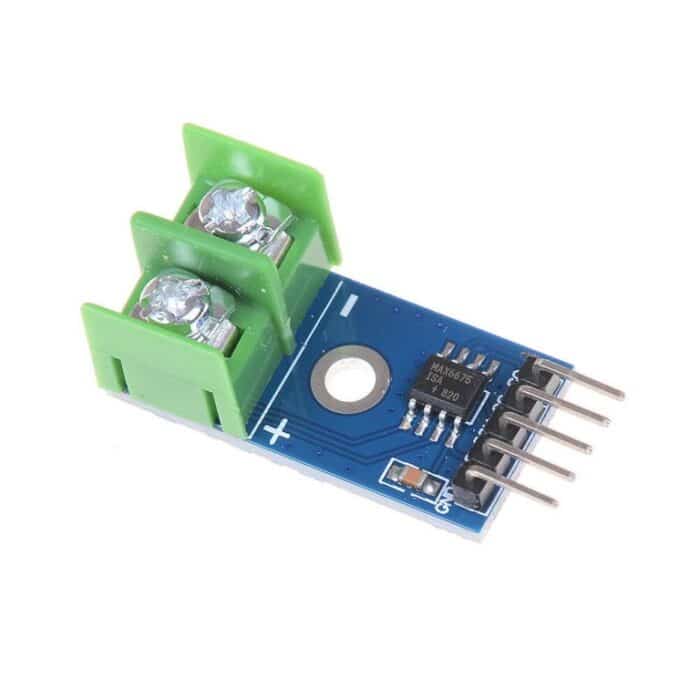

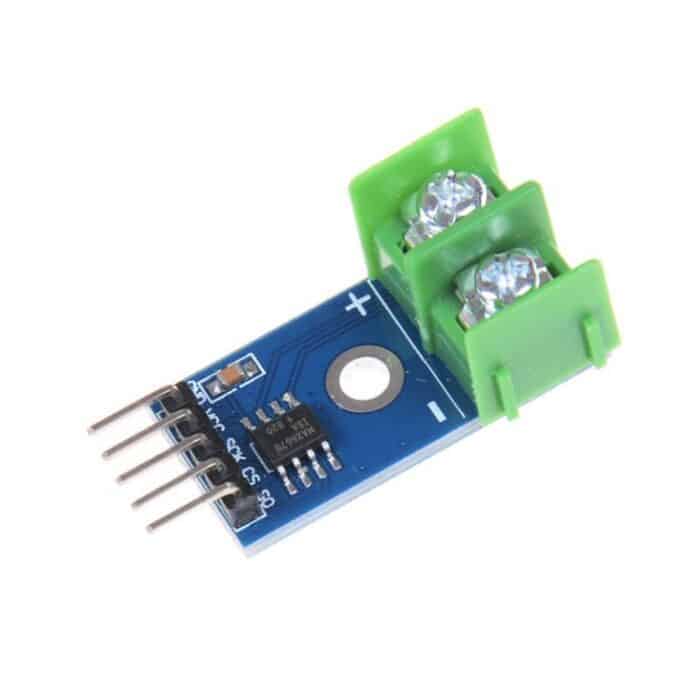

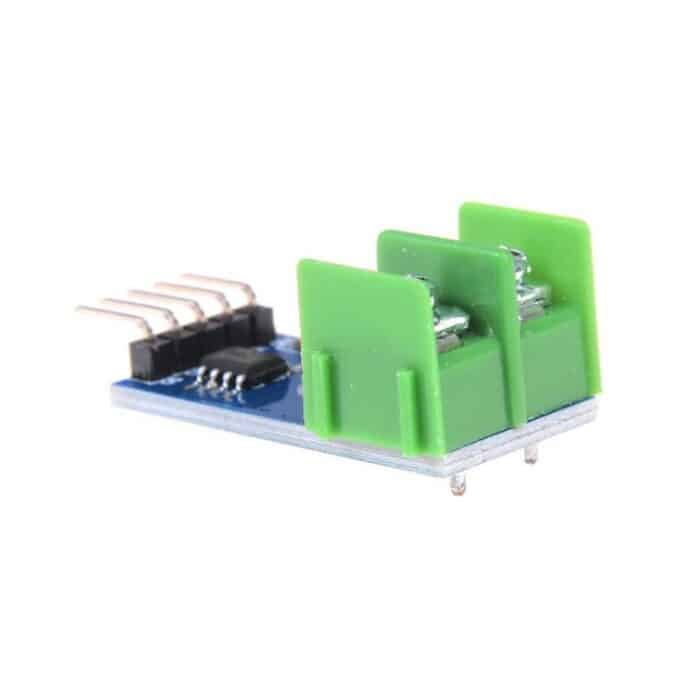

MAX6675 Module with K Type Thermocouple Sensor

This
MAX6675 Module with K Type Thermocouple Sensor Measure 1024°C
Temperature sensor makes use of the Maxim MAX6675 K-Thermocouple to
digital converter IC to provide a microcontroller compatible digital
serial interface (SPI compatible) for giving an accurate temperature
compensated measurement of the supplied K-Type thermocouple sensor.

It
has a 12-bit resolution providing temperature readings from 0°C to
1024°C (max temperature of the supplied sensor is 450°C) with a
resolution of 0.25°C.

Screw
terminals allow for connection to the thermocouples spade connectors
and a 5 pin standard 0.1″ header provides an interface to a
microcontroller such as an Arduino development board.

Supplied
thermocouple sensor has a diameter of 4.5mm with a 6mm threaded
mounting bolt. The total length of the sensor including cable and spade
connectors is ~100cm.

Features of MAX6675 Module with K Type Thermocouple Sensor:-

• Internal integrated cold junction compensation circuit;
• Temperature signal can be converted into 12-bit digital
• Embedded thermocouple break detection circuitry.
• K-type temperature probe
• Simple SPI serial output temperature.
• High impedance differential inputs.
• Thermocouple break detection.
• 2000V of ESD signal.
