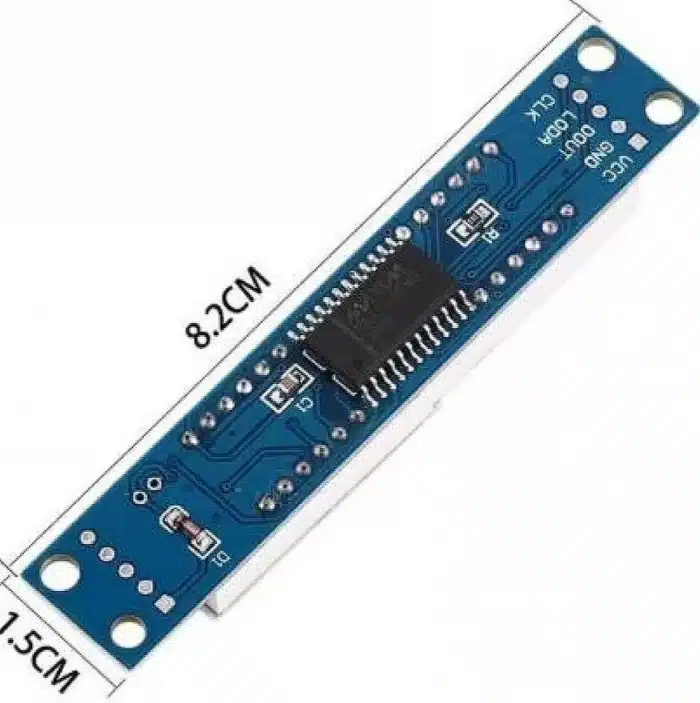

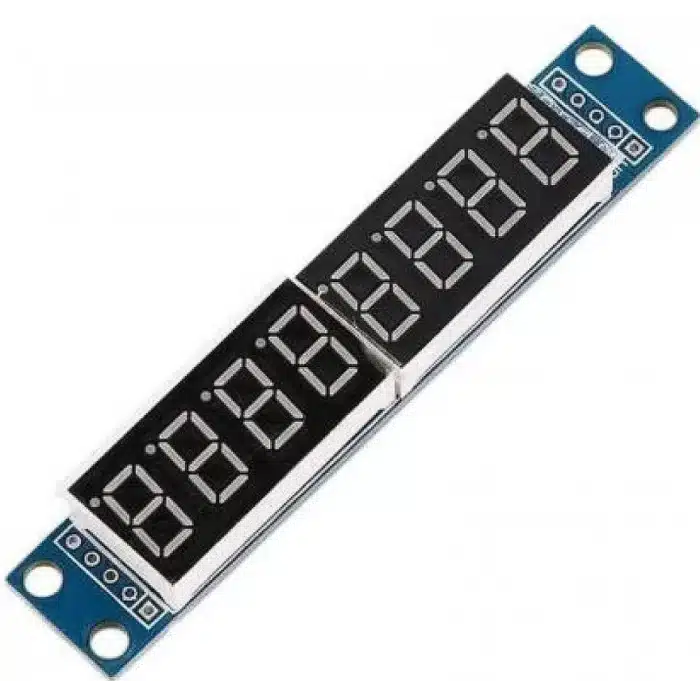

MAX7219 8 Digit Led Tube Display Control Module

150.00 (Incl. Tax)

9 in stock

7 People watching this product now!
SKU: SE52929 Categories: , , Tag:
Description

MAX7219 8 Digit Led Tube Display Control Module For Arduino. MAX7219 is an integrated serial input/output common-cathode display driver, which connects your microprocessor to a 7-segment digital LED display with 8 digits.

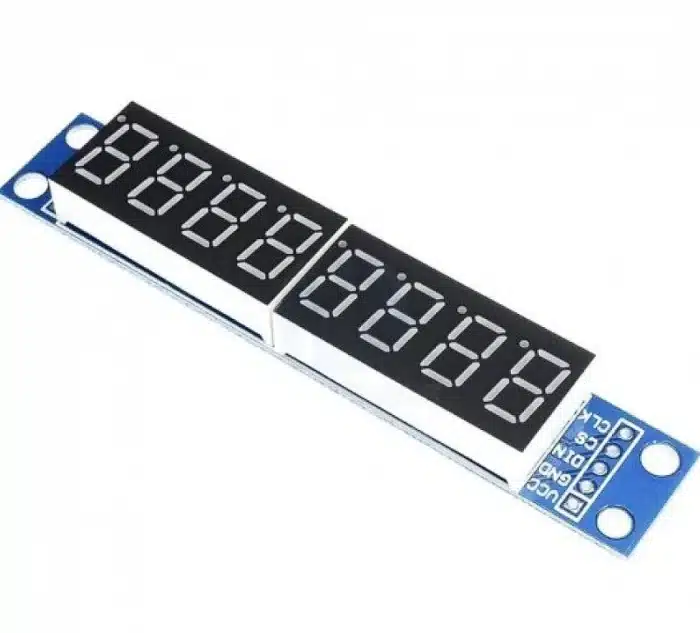

Wiring instructions(for example, it can connect any IO port, modified the Port Definition in the program):

VCC: 5V
GND: GND
DIN: P00
CS: P01
CLK: P02

Note:
VCC and GND should not be connected reversed, so as not to burn the chip



Features:

  1. 100% Brand new and high quality
  2. MAX7219 digital display control module
  3. This module is compatible with 5V and 3.3V microcontrollers.
  4. You  can use it for Arduino
  5. Only three IO ports are used to drive the eight-digit display. MAX7219 supports flicker-free displays as well as cascading displays.

Package Includes:

1 x MAX7219 8 Digit Led Tube Display Control Module
