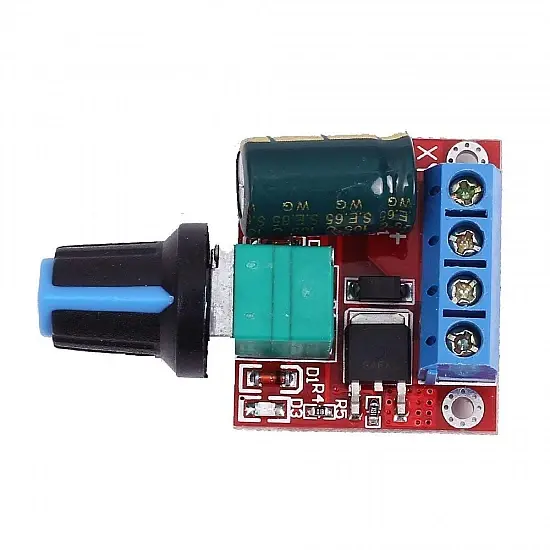

PWM DC Motor Controller – 5V to 35V – 5A – LED Dimmer Module

Precautions

• The PWM DC Motor Controller is DC, and can not directly connect to the AC (for example home 220V AC), otherwise, it will burn!
• DC power supply positive and negative terminals should not be reversed, otherwise, the module may get damaged.
• The motor can be positive or negative when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
• Adjust the potentiometer knob to change the module output duty cycle, the motor speed changes.

Features

• Mini DC 4.5-35V 5A PWM Motor Speed Controller.
• Wide voltage DC motor speed controller.
• Operating voltage: DC4.5V-35V
• Output current: 0-5A
• Output power: 70W (max)
• PWM duty cycle: 1% -100%.
