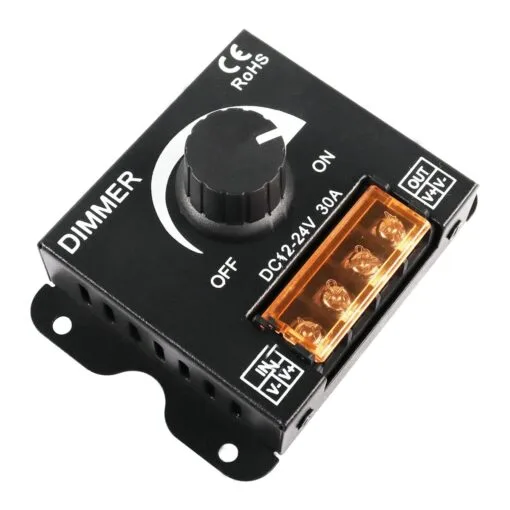

DC 12V–24V 30A LED Light Dimmer Switch Module – PWM Brightness Controller

Description:

The DC 12V–24V 30A LED Light Dimmer Switch Module is a high-power PWM (Pulse Width Modulation) controller designed to adjust the brightness of LED lighting systems. With a maximum load capacity of 30A, it can handle large LED strips, lamps, and other DC lighting setups efficiently. The knob-style control allows smooth and precise brightness adjustment without flicker. Ideal for both home and industrial lighting applications.

Features:

• Input voltage range: DC 12V–24V
• High current handling capacity: up to 30A
• PWM technology for efficient and flicker-free dimming

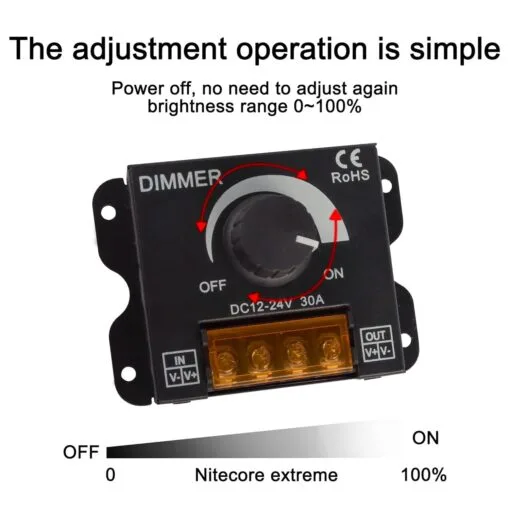

• Rotary knob control for easy brightness adjustment
• Compact and durable design for long-term use
• Suitable for single-color LED strips, LED lamps, and DC lighting systems
• Easy installation with screw terminal connections

Specifications:

• Product Type: LED Dimmer Switch Module
• Input Voltage: DC 12V – 24V
• Output Current: Up to 30A
• Output Power: 12V- up to 360W; 24V- up to 720W
• Control Method: Rotary knob (manual)
• Dimming Method: PWM (Pulse Width Modulation)

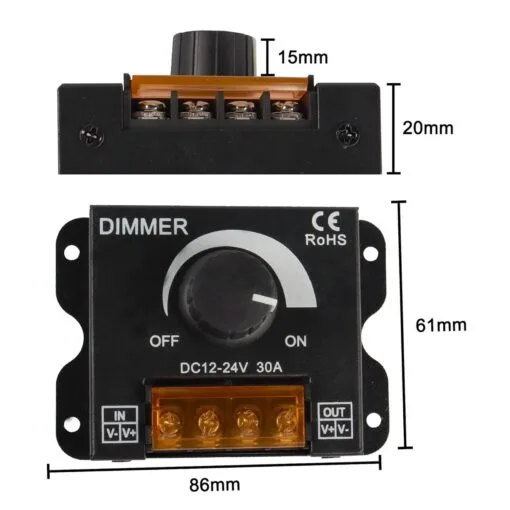

• Dimensions: ~ 85 × 65 × 40 mm (approx.)
• Weight: ~ 120 g (approx.)

Applications:

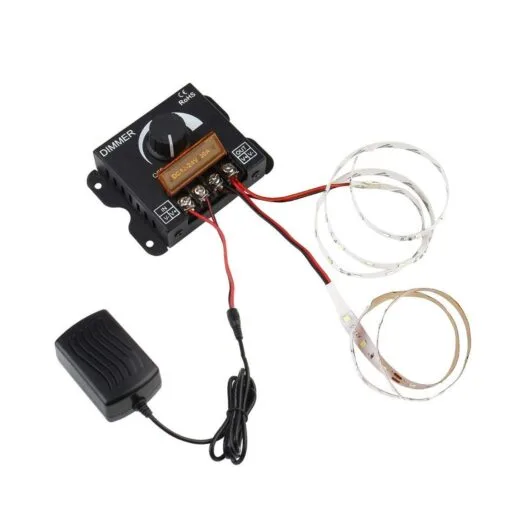

• Dimming 12V/24V LED light strips
• LED panel lights and DC lamps
• Automotive LED lighting systems
• Stage, decorative, and architectural lighting control
• DIY home automation and lighting projects

Package Includes:

• 1 × DC 12V 24V 30A LED Dimmer Switch Module
