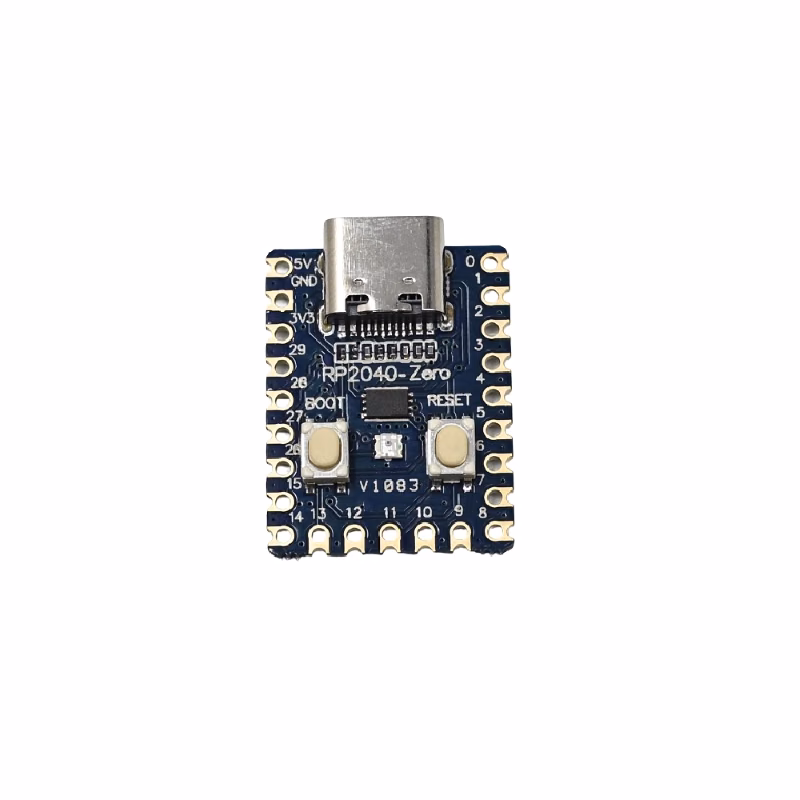

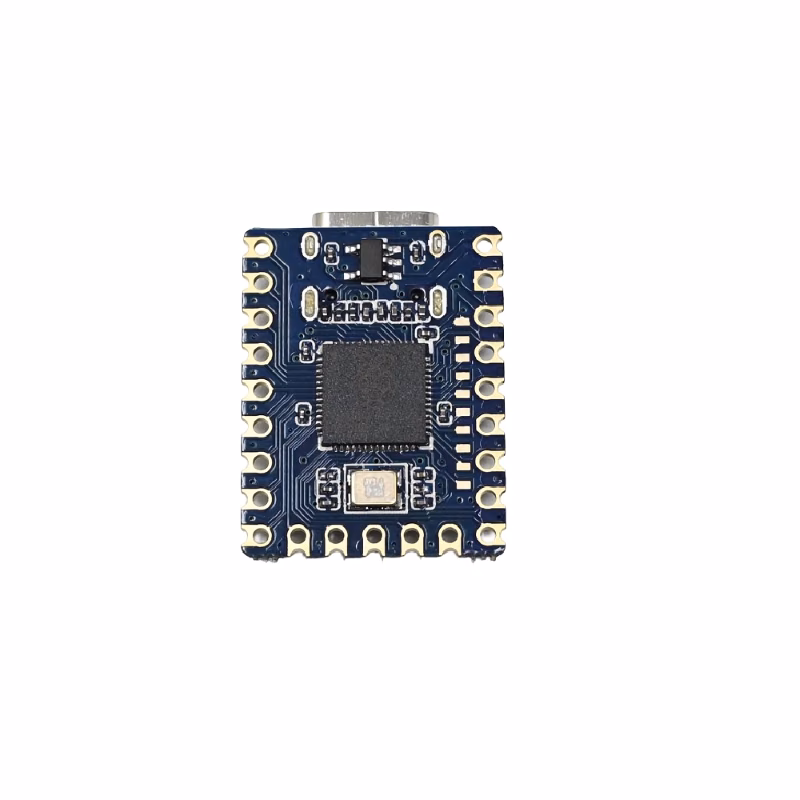

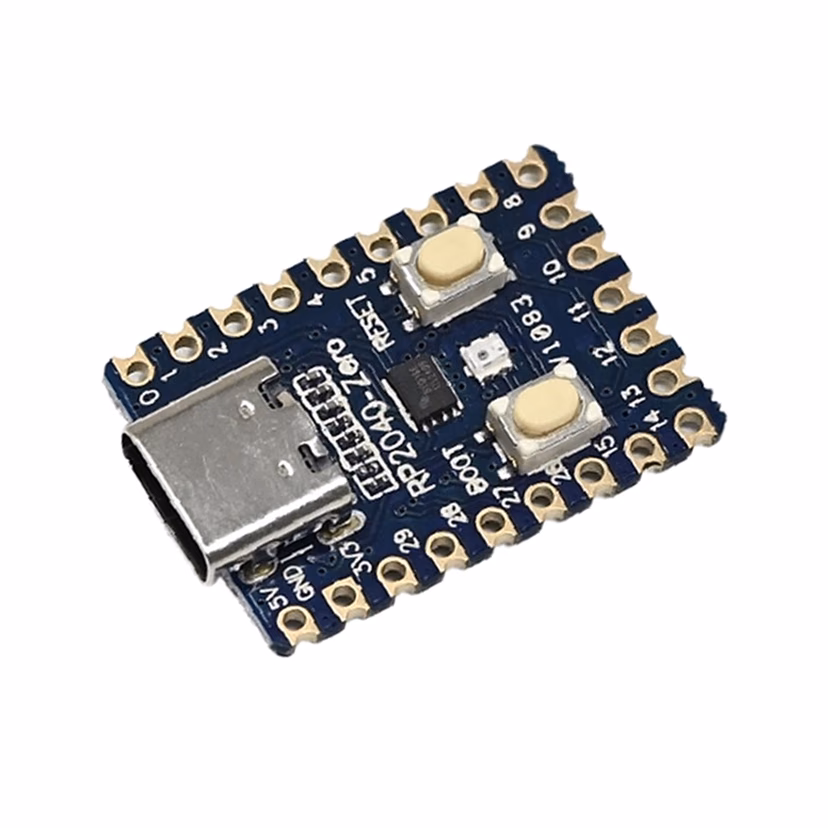

RP2040-Zero for Raspberry Pi Microcontroller without Soldering

The RP2040-Zero is a low-cost, high-performance microcontroller board based on the RP2040 chip, developed by Raspberry Pi. It offers a compact, Raspberry Pi Pico-like design, while maintaining compatibility with most Pico accessories and code. It features a dual-core ARM Cortex M0+ processor and provides a versatile platform for embedded projects, IoT, and educational applications.

Specification

Features:

1. Microcontroller: RP2040 chip (Dual-core ARM Cortex M0+, up to 133 MHz)
2. Memory: 264KB SRAM, 2MB Flash storage
3. GPIO: 29 multi-function GPIO pins (20 via edge pinout, others via solder points)
4. Communication: 2x SPI, 2x I2C, 2x UART
5. Analog: 4x 12-bit ADC channels, 16x PWM channels
6. USB: USB 1.1 device and host support via USB-C connector
7. Low Power: Sleep and dormant modes for power efficiency
8. Clock and Timer: Accurate clock and timers built-in
9. Temperature Sensor: On-chip temperature sensor
10. Pico Compatibility: Fully compatible with Raspberry Pi Pico accessories and code
11. Custom Peripherals: 8x Programmable I/O (PIO) state machines for custom peripheral support
12. Programming: Drag-and-drop programming over USB mass storage

Package Includes:

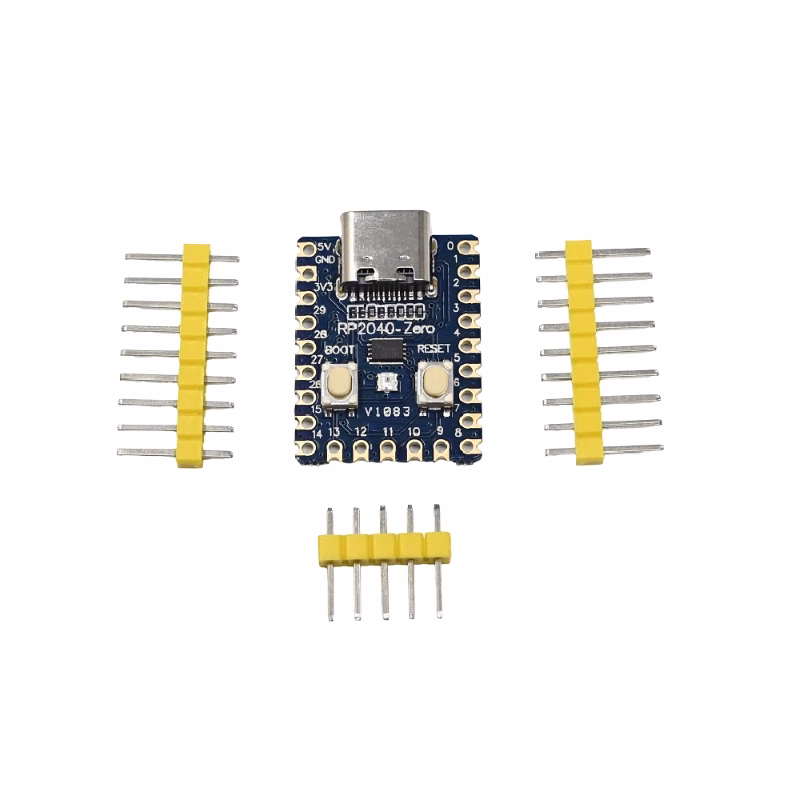

1 x RP2040-Zero for Raspberry Pi Microcontroller without Soldering
