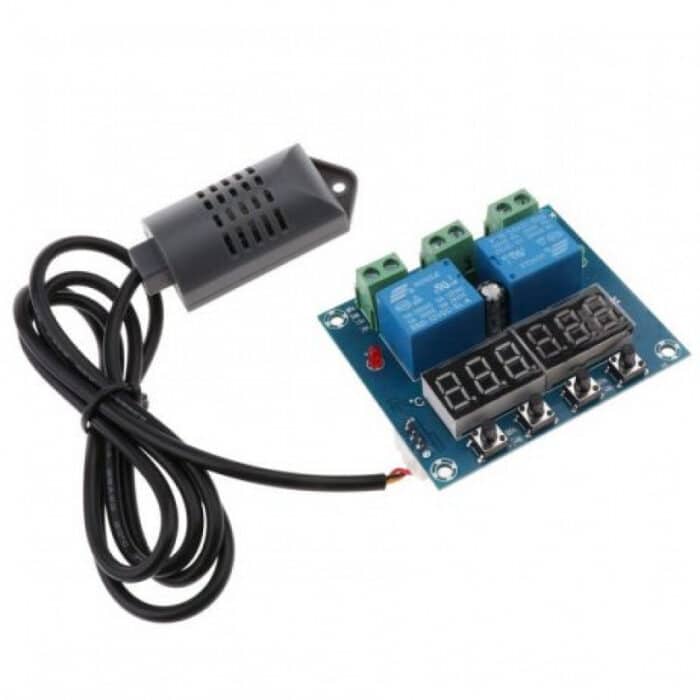

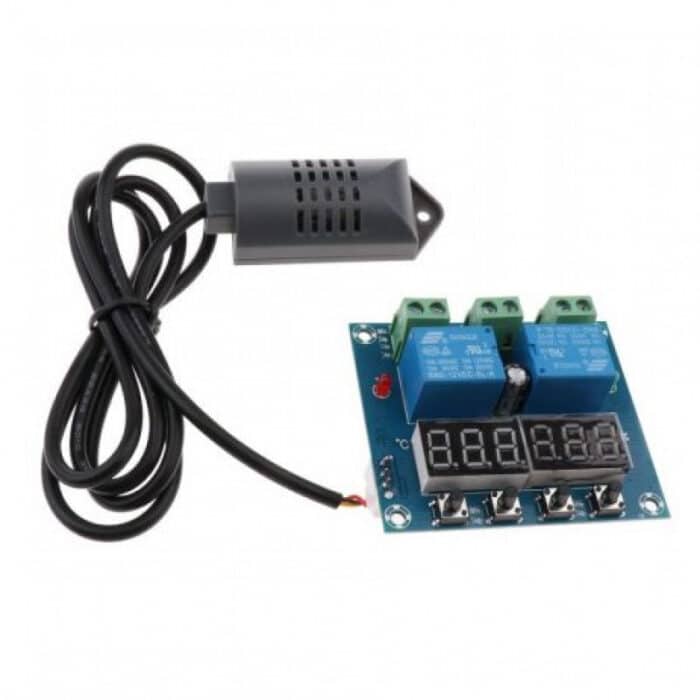

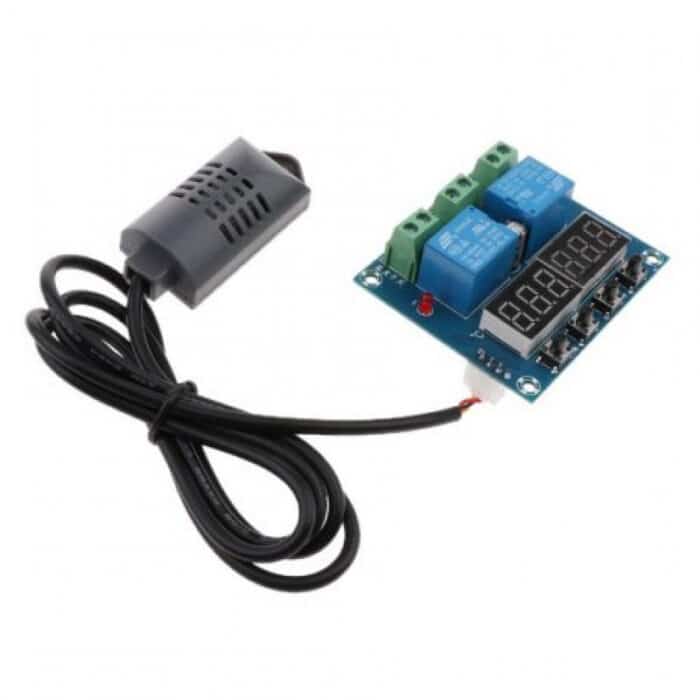

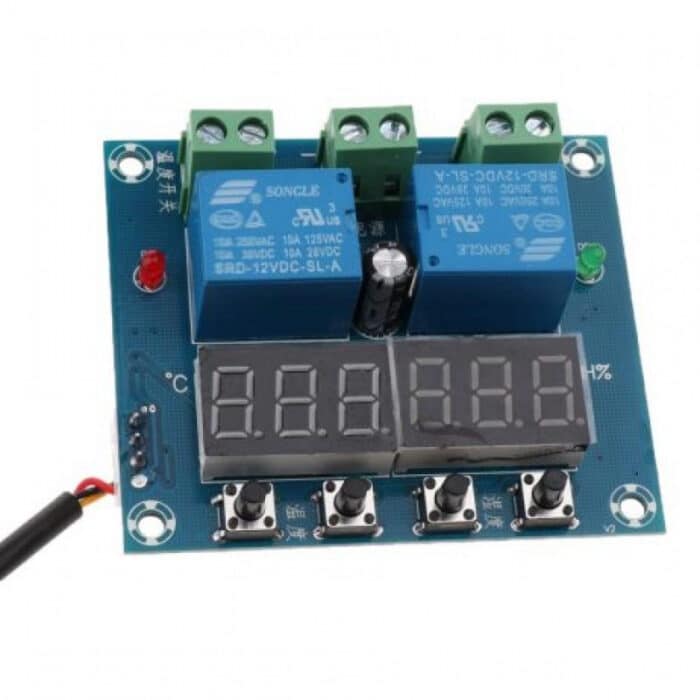

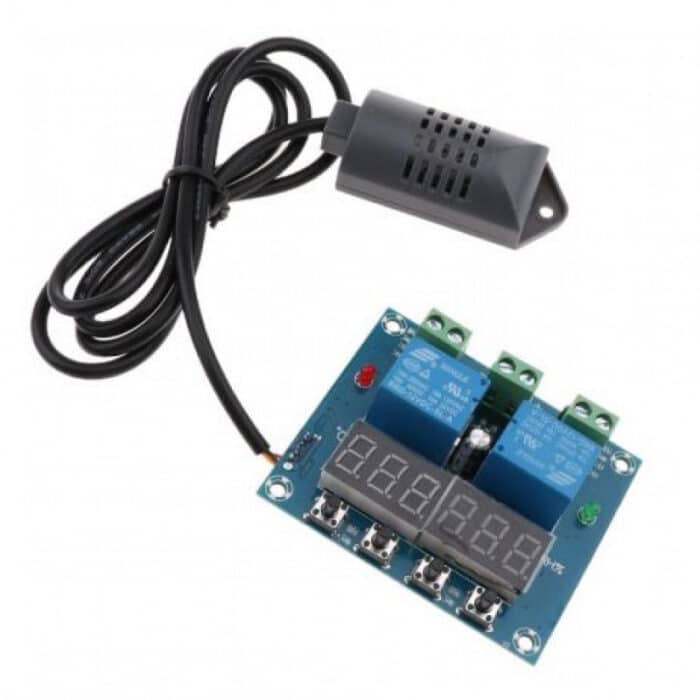

the all-new DC 12V XH-M452 Temperature And Humidity Controller Module
Digital Display. It has a very High Accuracy Dual Output Automatic
Constant Temperature And Humidity Control Board.
Humidity Control
- Set to start humidity: long-press the + key, start the humidity value flashing, set by + / key launch humidity value
- Set stop humidity: long press to stop humidity value, set by + / key to stop the humidity value
Temperature Control
- Setting
the temperature +: Normal display mode, long-press the + key for 3
seconds, start temperature numerical flashing, press the + / key
setting values, the wrong operation after 5 seconds, automatically
return to detect temperature display - Setting
the temperature :Normal display mode, long press button for 3
seconds, stop numerical flashing temperature, press the + / key set
value - Restore
the factory Settings: At the same time long press temperature, and
humidity + key for 3 seconds, digital display, 888, 888 - Setting the start temperature: Long press the + key, start the flashing temperature, set start temperature by + / key
- Setting Stop temperature: long press button, stop flashing temperature, set stop temperature by + / key
Features of XH-M452 Temperature and Humidity Controller Module:-
- Power supply: DC 12V
- Temperature measurement range:-40~120
- Humidity range0~100%RH
- Control precision0.1 0.1%RH
- Test probe Integrated sensor
Specifications of XH-M452 Temperature and Humidity Controller Module:-
| Model |
XH-M452 |
| Voltage |
DC 12V |
| Temperature Range |
0% to 100%RH |
| Control Accuracy |
0.1C, 0.1RH |
| Detector probe |
Integrated sensor |
| Output type |
Relay output |
| Output capacity |
up to 10A |
| Length(mm) |
65 |
| Width(mm) |
55 |
| Height(mm) |
28 |
| Weight(g) |
69g (with sensor) |
Package Includes:
1 x XH-M452 Temperature and Humidity Controller Module With sensor
