OLED (Organic Light-Emitting Diode) is a
self light-emitting technology composed of a thin, multi-layered
organic film placed between an anode and cathode. In contrast to LCD
technology, OLED does not require a backlight. OLED possesses high
application potential for virtually all types of displays and is
regarded as the ultimate technology for the next generation of
flat-panel display

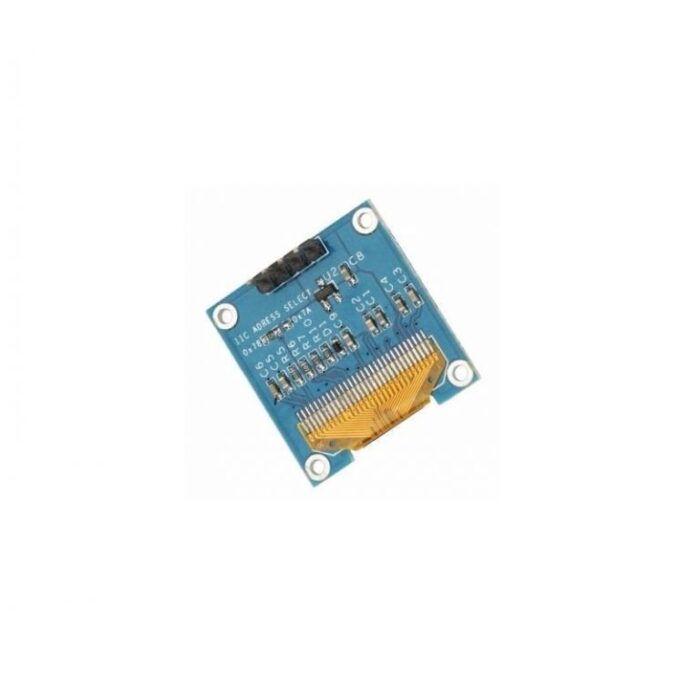

This 0.96 Inch I2C/IIC 4pin OLED Display Module BLUE can be interfaced with any microcontroller using SPI/IIC/I2C
protocols. It is having a resolution of 128×64. The package includes
display board, display, 4 pin male header pre-soldered to board.
OLED monochrome 128×64 dot matrix
display module. The characteristics of this display module are high
brightness, self-emission, high contrast ratio, slim/thin outline, wide
viewing angle, wide temperature range and low power consumption.
Interface pin for 4 PIN 128×64 OLED
- VCC: 3.3 volts – 5 Volts
- GND: Ground
- SCL: Serial Clock
- SDA: Serial Data
Features of 4 pin 128 x 64 OLED Display
- Super High Brightness (Adjustable)
- Super High Contrast (Adjustable)
- Embedded Driver/Controller
- Display size: 0.96″
- Resolution radio:128 x 64
- Interface modes: I2C/IIC
- working voltage: 3.3V
- Control Chip: SSD1306
Package Includes:
1 x 0.96 Inch I2C IIC 4pin OLED Display Module BLUE
