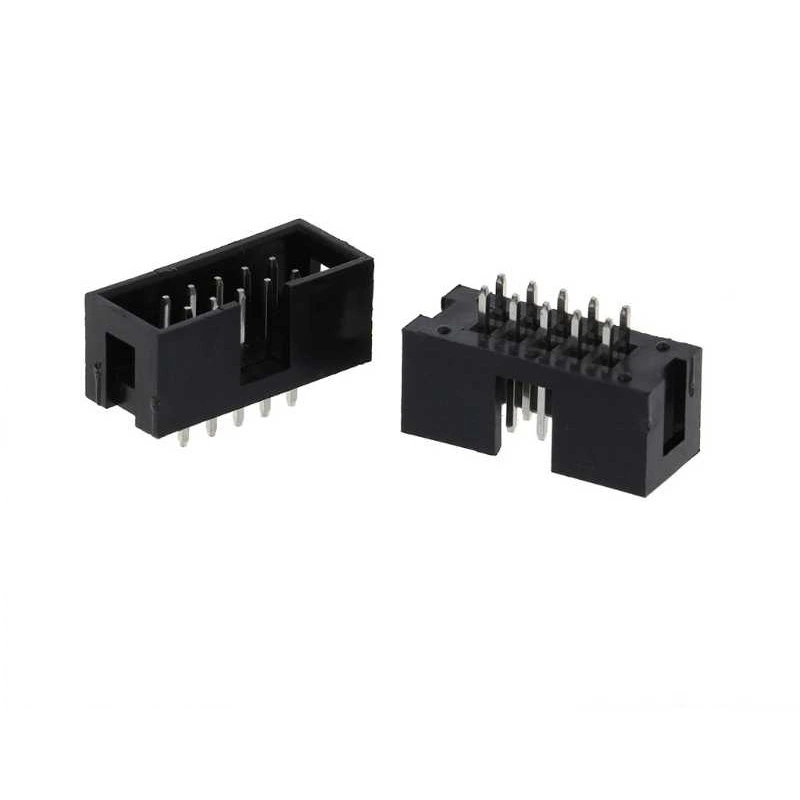

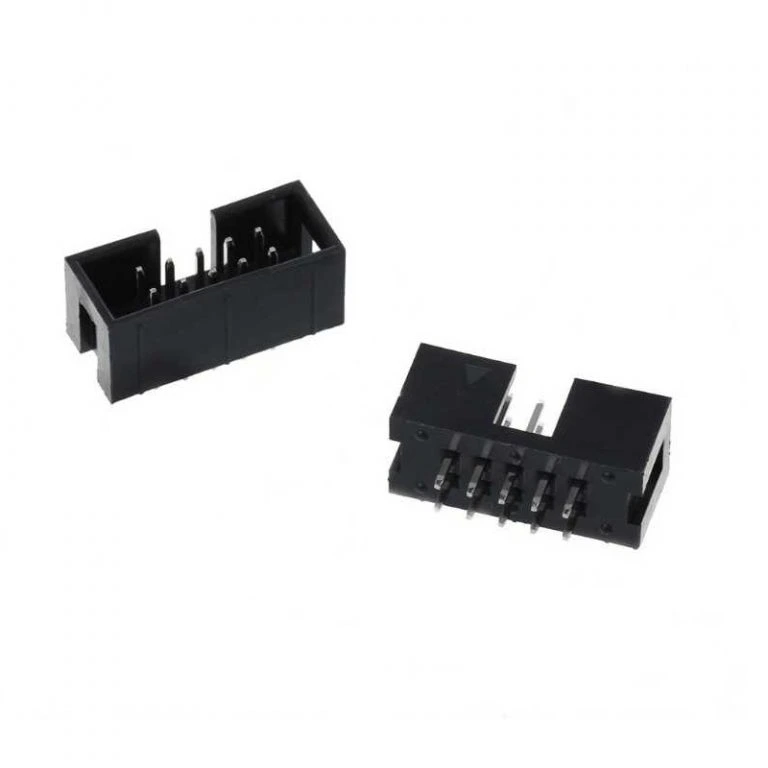

10 Pin Straight Male IDC Socket Connector – 2.54mm (FRC Connector)

10 Pin Straight Male IDC Socket Connector – 2.54mm (FRC Connector)

10 Pin Straight Male IDC Socket Connector – 2.54mm, 2.54mm DC3 10 Pin Straight Male IDC Socket, is an IDC socket connector used to make physical connections in a variety of applications. They are common in industrial applications, where the accuracy of connections, the ability to make them reliable, and where there may be many wires that need to be connected at once are all vital considerations.

Features/Specs:

• Part No: STIDC-H10S
• Gender: Male
• Connector Type: IDC
• Current Rating: 3A
• Insulation Resistance: 1000MΩ MIN
• Contact Impedance: 15mΩ MAX
• Mounting Type: PCB Mount
• Number Of Contacts: 10
• Number Of Rows: 2
• Pitch: 2.54mm
• Contact Material: Phosphor Bronze
• Operating Temperature: -25°C ~ +105°C
• Housing Material: Thermoplastic
• Contact Plating: Nickel-plated terminals
• Color: Black

Package Includes:

• 1 X 10 Pin Straight Male IDC Socket Connector – 2.54mm (FRC Connector)

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
