10S 36V 20A BMS For Lithium ION Battery Protection – DALY

10S 36V 20A BMS For Lithium ION Battery Protection – DALY

DALY LI-ION 10S 36V 20A is a BMS – a battery management system designed to monitor battery status and control the charging and discharging process. This charge-discharge controller module can be concurrently connected to 10 rechargeable batteries in series. This is a 13S fixed configuration BMS. It cannot be used for any other battery pack configuration. This BMS also cannot be used for Li-Ion ,Li-Metal or LTO batteries. It is strictly for LiFePo4 battery packs only.

Features

• Cell overvoltage and under-voltage protection
• Intelligent battery balancing

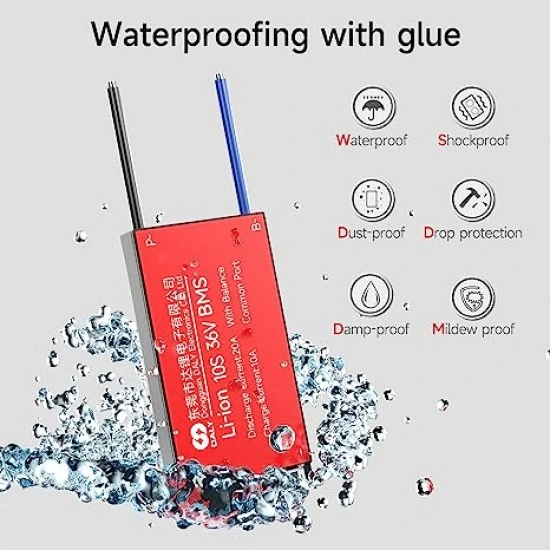

• Fully sealed waterproof technology along with  dustproof, shockproof, anti-squeezing, and other protective functions
• 10s 36v 20Amps Lithium Ion BMS
• Water Proof Bms
• With Thermal Sensor
• Support up to 700 watts motor

Specifications

• Normal voltage – 37v,
• Full charge voltage – 42v
• Cutoff Voltage- 30V
• Charging Current – Max 10A
• Discharge Current- Max 20A
• Charger Specification – 42v
• You can use this module in any AH like 20AH, 50AH also
• Temperature range of this BMS is from -20℃ to as high up to 70℃

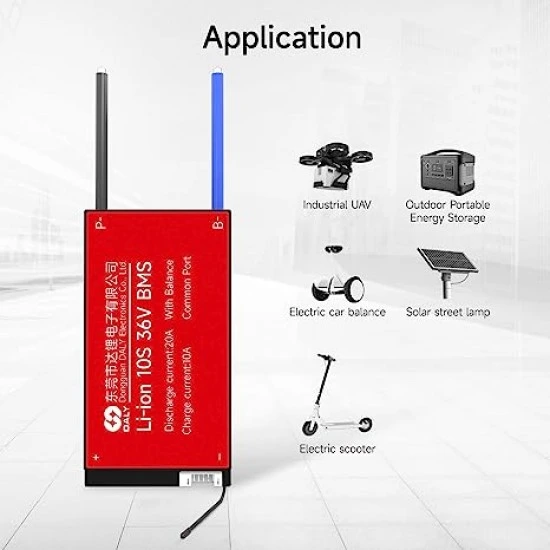

Applications

• Solar street lamp
• Electric tools
• Ups
• EVs
• Solar inverter
