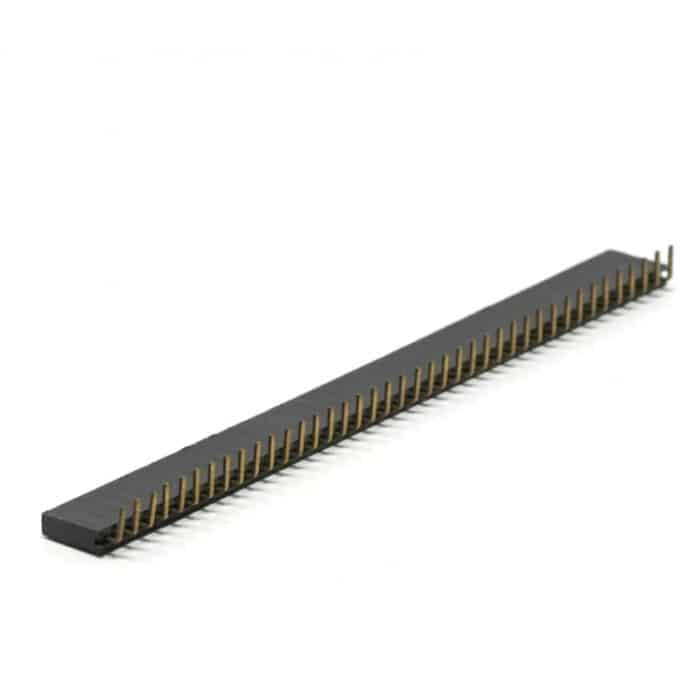

1×40 2.54mm Pitch Female Berg Strip Header (Right Angle)

1 x 40 Berg Strip Right Angle Female Connector. Break it to the required number of pins.

Also, custom PCBs or general custom headers use these types of connectors.

These
connectors are bent at a 90 angle, which is suitable for many
applications where the connectors are many times like prototyping.

Specifications and Features:

1. Number of Pins: 40
2. Pin Spacing (pitch): 2.54 mm
3. Length of the Strip: 103 mm
4. Width of the Strip: 2.4 mm
5. Strip Height: 11 mm (with contact points)
6. Pin height: 3mm
7. Weight: 0.017 kg.

Package Includes:

1 x 1×40 2.54mm Pitch Female Berg Strip Header (Right Angle)

Specifications :-

Connector	Header Strip
Gender	Female
Mounting Type	Through Hole
Pin Spacing (mm)	2.54
Contact Material	Phosphor Bronze
Contact Resistance	20m
Insulation Material	PBT UL 94V-0
Insulation Resistance (M)	1000
