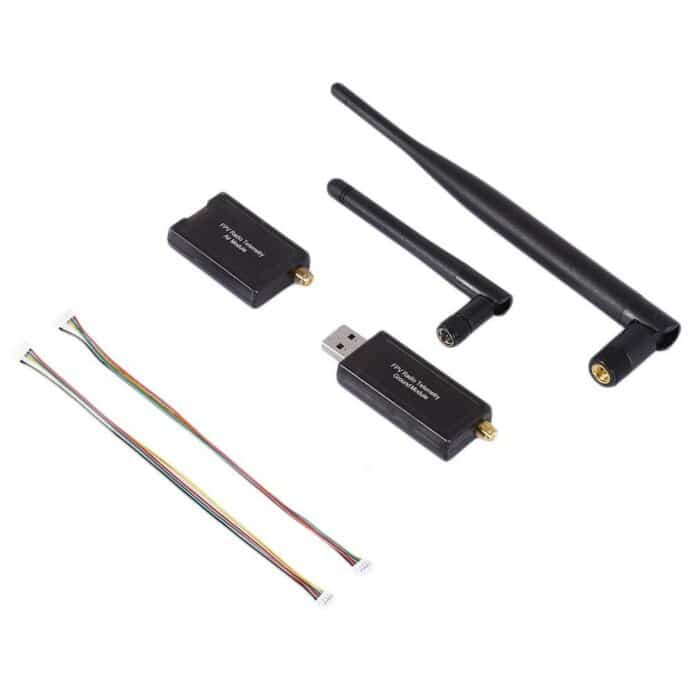

This is 433Mhz 100mW Radio Telemetry V2 Kit is based on the 3DR
Telemetry kit and is 100% compatible as it runs the same firmware
onboard. This firmware used by 3D Robotics is completely open-source
which is, of course, the reason we are able to use it on our own version
at Unmanned Tech.
The Unmanned Telemetry Kit is compatible with Ardupilot or Pixhawk-based systems and allows you to easily add a two-way telemetry
connection between your drone and ground station. This product comes
with our full support and warranty as we are confident in the
functionality and reliability of this item.
This is the new and improved V2 of the Unmanned Telemetry kit. The
full features and specifications are listed below but the main features
are that both air and ground module are now interchangeable, and each is
with a USB connector and a DF13 connector. Please note that to connect
to Pixhawk, it is a good idea to also purchase a 6-pos to 6-pos cable as this is easier and better than using the cable included.
Note:
- This telemetry only could use with APM compatible control board.
- As we have some variations in the color of connecting cable, we will be shipping it randomly to our customers.
Features :
- Very small size & Lightweight (under 4 grams without antenna)
- Transparent serial link
- MAVLink protocol framing and status reporting
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- Support for LBT and AFA
- Configurable duty cycle
- Interchangeable air and ground modules
- Micro-USB port
- 6-position DF13 connector
- 100 mW maximum output power (adjustable)
- Based on HopeRF’s HM-TRP module
- RP-SMA connector
- 2-way full-duplex communication through adaptive TDM
- UART interface
- Transparent serial link
- MAVLink protocol framing
- Frequency Hopping Spread Spectrum (FHSS)
- Configurable duty cycle
- Error correction corrects up to 25% of bit errors
- Configurable through Mission Planner and APM Planner
- Built-in error correcting code (can correct up to 25% data bit errors)
- The demonstrated range of several kilometers with a small Omni antenna
- Can be used with a bi-directional amplifier for even more range
- AT commands for radio configuration
- RT commands for remote radio configuration
- Adaptive flow control when used with APM
- Based on the HopeRF HM-TRP radio module, featuring a SiLabs Si1000 RF microcontroller.
Package Includes :
No Guarantee No Warranty
