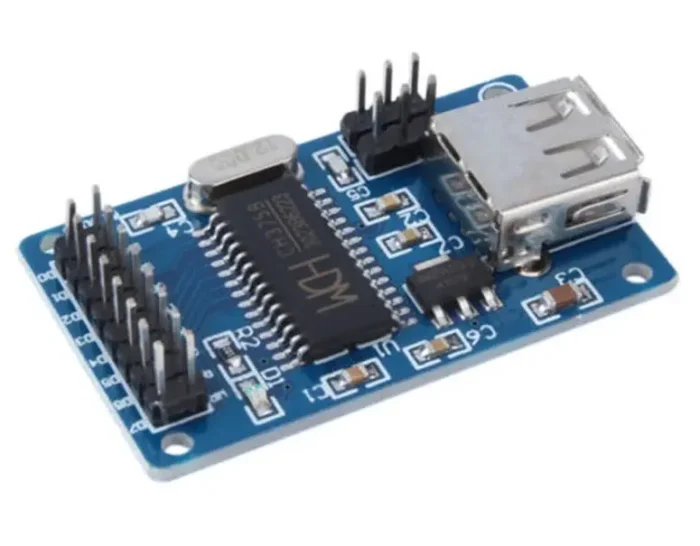

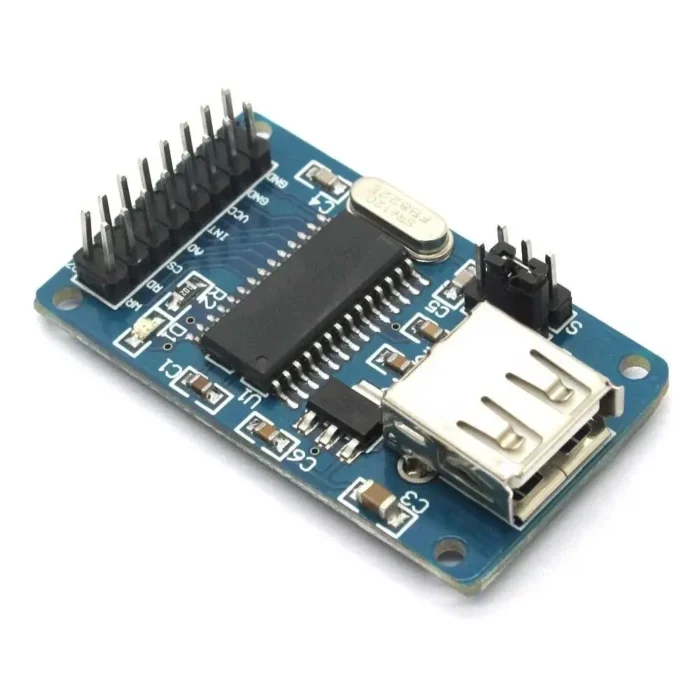

CH375B USB Disk Read-write Module USB Flash Disk For Arduino

PRODUCT DESCRIPTION

CH375 is fully compatible with CH372 in USB device mode and has all the features of CH372. In USB host mode, CH375 supports USB full-speed devices and allows the external microcontroller to communicate with USB devices according to the USB protocol. CH375 firmware also has a dedicated protocol for processing Mass-Storage devices, which enables the external microcontroller to read and write USB storage devices (including USB hard disk/USB flash drive/U disk) by sectors as the basic unit.

CH375 has an 8-bit data bus and control lines for read, write, chip select and interrupt output. It can be easily connected to the system bus of the microcontroller/DSP/MCU/MPU controller. In USB host mode, CH375 also provides serial communication through serial input, serial output and interrupt output for monolithic/DSP/MCU/MPU connection.

Specifications and Features :

1. CH375B with the 8-bit data bus and read, write, chip select control lines and interrupt output can be easily attached to the system bus of the microcontroller/DSP/MCU/MPU controller.
2. USB host mode, CH375B  provides serial communication via serial input, serial output, and interrupt output monolithic/DSP/MCU/MPU connected.
3. 2×8 connector, easy with the MCU mount.
4. Jumper selectable can work in parallel or serial mode.
5. USB status indicator.
6. On board 3.3 V LDO 1117, provides 800 mA current.
7. Colour: Blue

Package includes :

1 x CH375B USB Disk Read-write Module USB Flash Disk For Arduino
