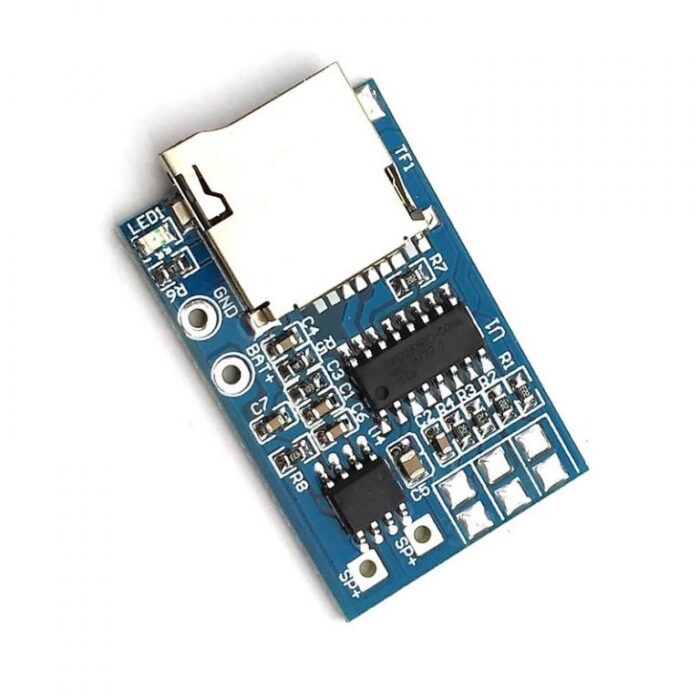

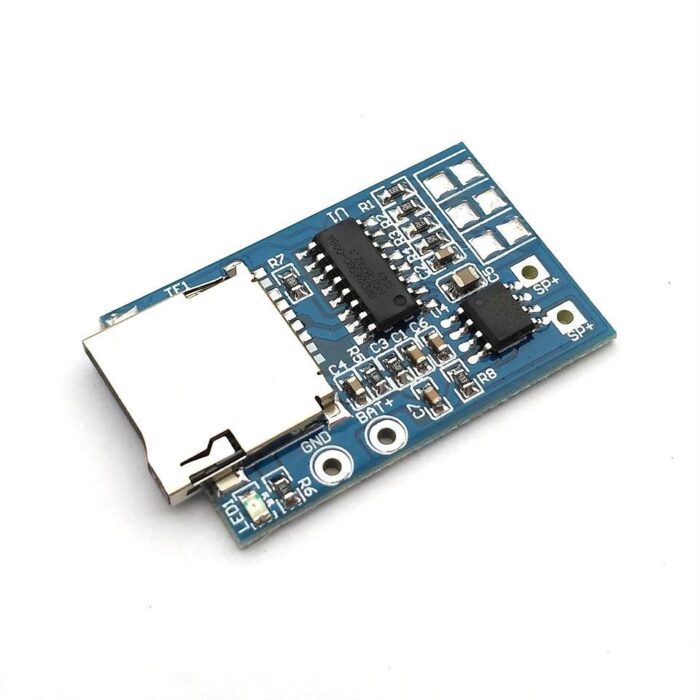

GPD2846A TF Card MP3 Decoder Board 2W Amplifier Module

This TF card MP3 decoder board utilises the GPD2856A MP3 decoder IC
and has an onboard 2-watt L/R mixed mono audio amplifier IC (8002). This
module is the updated version of the earlier GPD2846A TF card MP3
decoder board, and in this latest version, there is a TF card slot for a
micro-SD memory card and an LED power indicator. The board measures
35-mm × 22-mm and requires only a power supply, direct speaker
connection, and switches. The manufacturer recommends a working voltage
of 3.7 to 5-V.

Connection Diagram:

Specifications and Features:

1. Working Voltage: 3.7V Lithium Battery 600MA or 5V USB Power Supply
2. Main Chip:GPD2846A
3. Chip Footprint: SOP16
4. PCB Size(LxWxH)mm :35 x 23 x 1
5. With 2W Mixed Mono
6. With Power supply, it can play Automatically
7. With Multifunction LED indicator
8. Supports MP3 format playback
9. Supports USB audio mode
10. Supports 3 types FM radio chip: RDA5807, BK1080 and RTC6207E.
11. Does not support infrared remote control.
12. Does not support USB device mode.

Package Includes:

1 x GPD2846A TF Card MP3 Decoder Board 2W Amplifier Module
