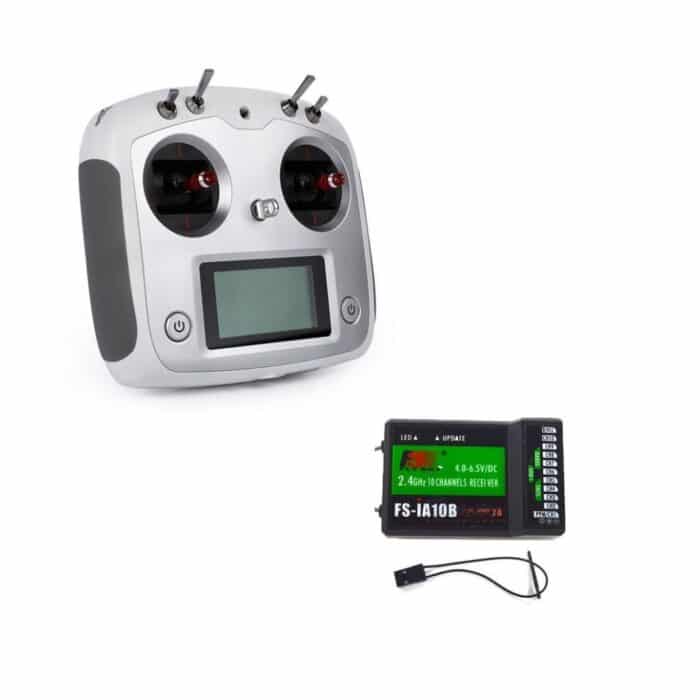

FS-i6S Remote Control 2.4G 6CH AFHDS with FS-IA10B Receiver

The FlySky FS-i6S Remote Control 2.4G 6CH AFHDS Transmitter with FS-IA10B Receiver new look design comes with
some exciting new features. This radio incorporates a monochrome
backlit LCD touchscreen making it easy to program and make changes in
sunlight or at night.

There are two internal dual
omnidirectional high gain antennas (for more reliability) built inside
the frame so they can’t be damaged in transit. To help control your
aircraft there are lots of programmable switches, buttons and scroll
wheels. Making them great for setting up flight modes and the scroll
wheels could be used for controlling camera gimbals.

The Premium designed and look makes you
feel the class of product and easy access to buttons in the right
position and smooth operation and controls. All switches and scroll
wheels are in easy reach and the adjustable length sticks can be set for
comfortable use.  There is a loop for attaching a neck strap and a
phone/monitor holder mounting point. There is even a mini USB port for
easy connection to your PC for updates or for connecting (via USB) to
your favourite simulator programs.

Each transmitter and receiver has its
own unique ID. Once the transmitter and receiver have been paired, they
will only communicate with each other, preventing other systems
accidentally connecting to or interfering with the system’s operation.
Each transmitter hops between 16 channels in order to reduce
interference from other transmitters.

With all the features the FS-i6S offers it is one of the best radios available in this price Range..!

Features:

1. Full touchscreen interface: More convenient and faster to control Bidirectional Communication
2. Capable of sending and receiving data:
   Each transmitter is capable of receiving data from temperature,
   altitude and many other types of sensors, servo calibration, and i-BUS
   Support.
3. Multi-channel Hopping Frequency:
   This systems width ranges from 2.4055GHz to 2.475GHz. This is divided
   into 140 channels. Each transmitter hops between 16 channels (32 for
   Japanese and Korean versions) in order to reduce interference from other
   transmitters.
4. Omni-directional Gain Antenna: The
   high efficiency Omni-directional high gain antenna cuts down on
   interference while using less power and maintaining a strong reliable
   connection.
5. Unique ID Recognition System: Each
   transmitter and receiver has its own unique ID. Once the transmitter
   and receiver have been paired, they will only communicate with each
   other, preventing other systems accidentally connecting to or
   interfering with the system’s operation.
6. Low Power Consumption: The
   system is built using highly sensitive low power consumption
   components, maintaining high receiver sensitivity, while consuming as
   little as one-tenth the power of a standard FM system, dramatically
   extending battery life.

Transmitter Schematic

Receiver Pin Diagram

Specifications:

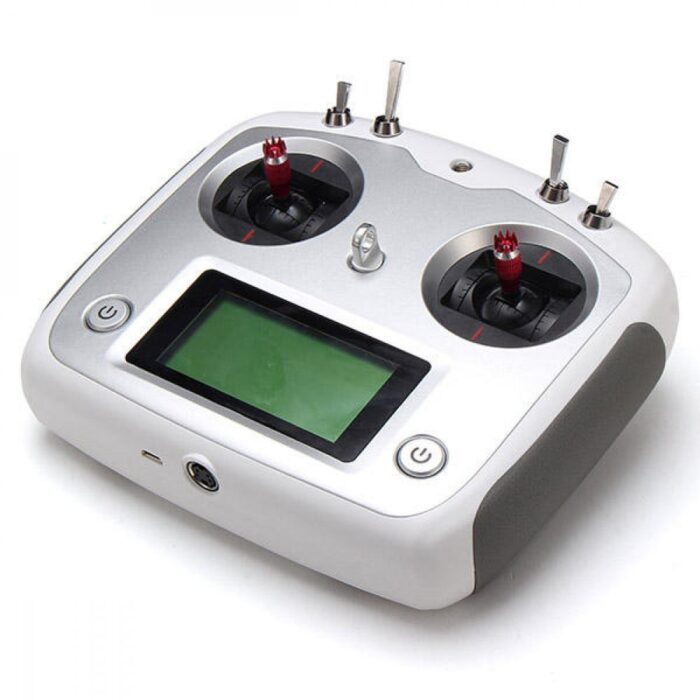

Transmitter

1. Brand Name: FlySky
2. Item Name: FS-i6s transmitter
3. Channel: 10
4. Model Type: Quadcopter
5. Channel resolution: 4096 steps
6. Low voltage warning: less than 4.2v
7. ANT length: 26 x 2mm( dual antenna)
8. Weight: 576g(With mobile Holder)

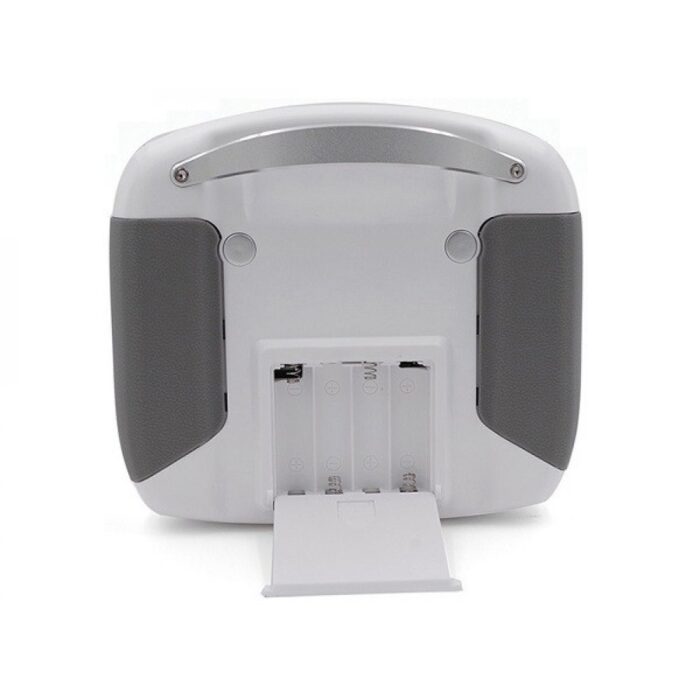

9. Battery: 6v 1.5 AA x 4(not included)
10. Size: 179 x 81 x 161mm
11. Color: Silver
12. Certificate: CE ,FCC
13. RF specification:
14. RF Range: 2.405 – 2.475GHz
15. Bandwidth: 500khz
16. RF Power: less than 20dBm
17. RF mode: AFHDS 2A
18. Modulation type: GFSK
19. RX Sensibility: -105dBm

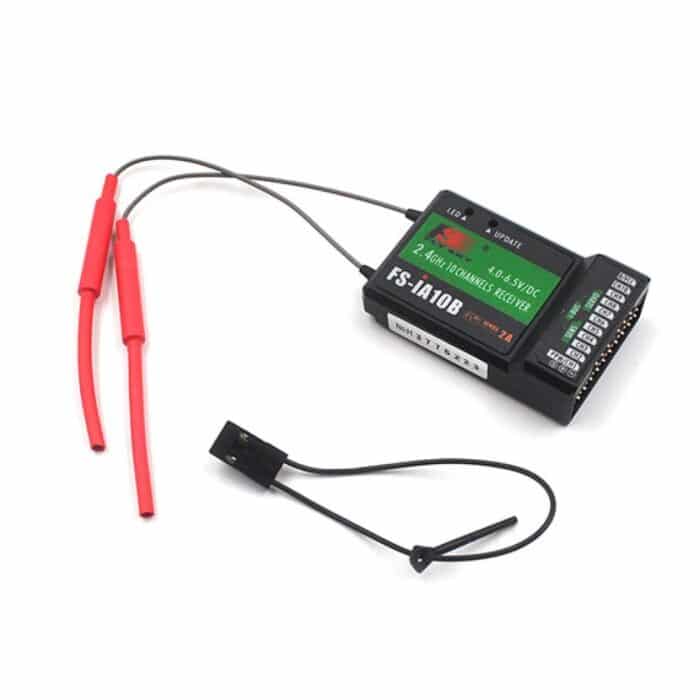

Receiver:

1. Brand Name: Flysky
2. Item Name: FS-IA10B Receiver
3. Number of Channels: 10
4. Suitable models: Airplane / glider / helicopter Health
5. Frequency range :2.4-2 .48 GHz
6. Number of newspapers: 160
7. Transmitting power: not more than 20dBm
8. Receiver sensitivity:-105dBm
9. 2.4G modes: automatic frequency second generation digital system
10. Encoding: GFSK
11. Antenna length: 26 mm * 2 (dual antenna)
12. Weight: 19.3 g
13. Input power :4.0~6 .5 V DC
14. Dimensions: 47  x 33.1 x 14.7 mm
15. Color: Black
16. Certification: CE0678, FCC
17. i-BUS Interface: Yes
18. Data acquisition interface: Yes

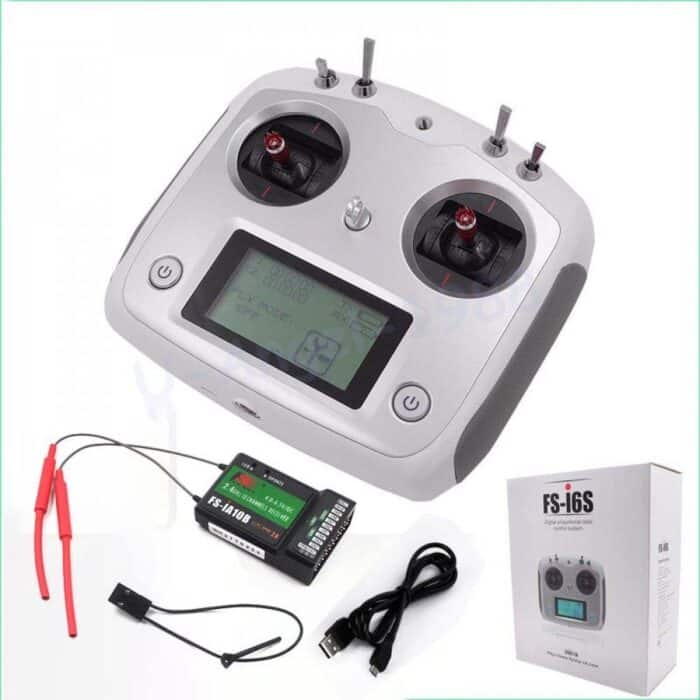

Package Includes:

1 x FS-i6S Remote Control 2.4G 10CH AFHDS Transmitter

1 x FS-IA10B Receiver

1 x Detachable Mobile/Tablet Holder

1 x USB Cable

1 x User Manual

No Guarantee No Warranty
Product image is for reference purpose only.
