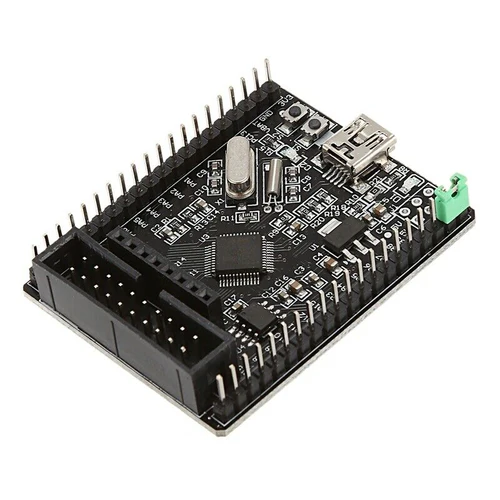

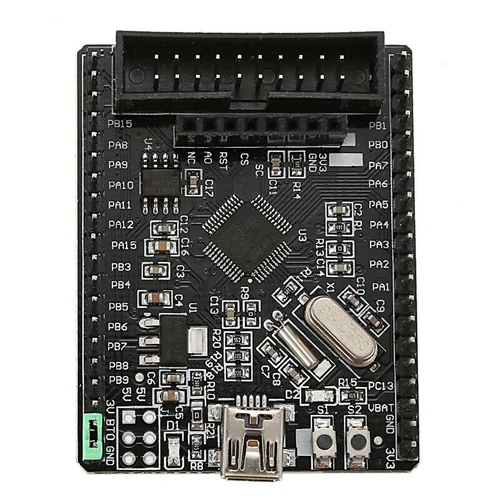

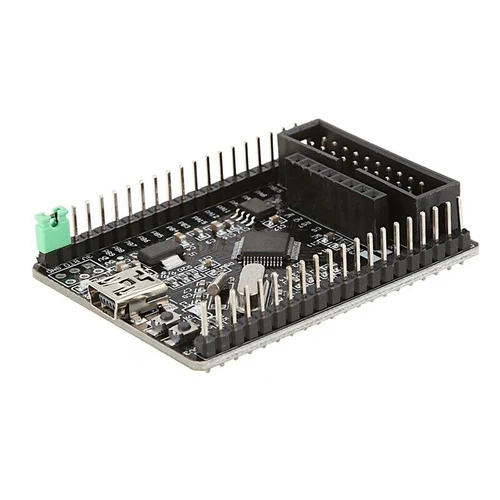

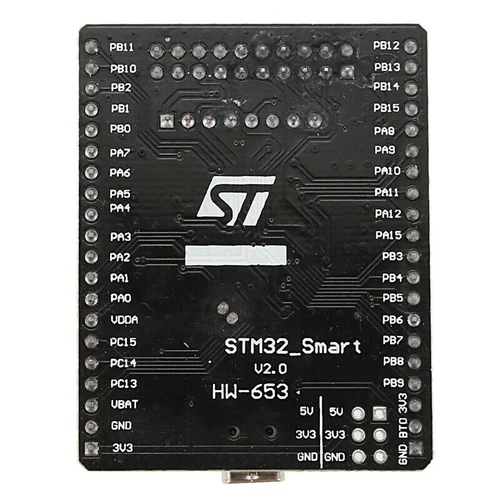

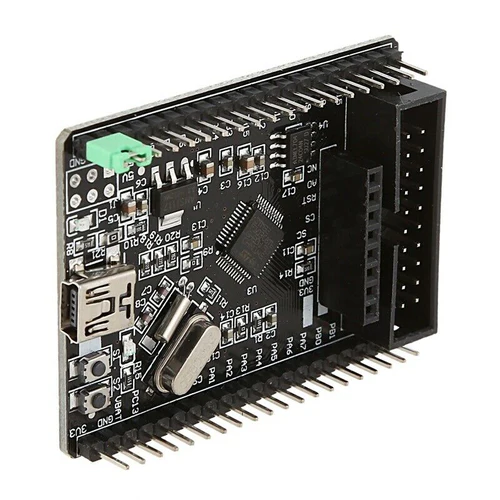

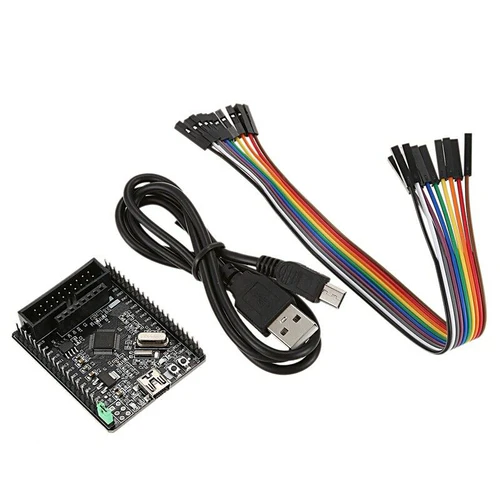

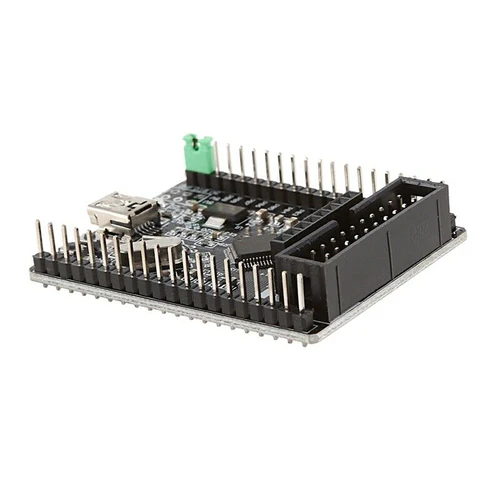

STM32F103C8T6 Minimum System Board Microcomputer STM32 ARM Core Board

Overview of this STM32F103C8T6 Minimum System Board

Features

Powerful ARM Cortex-M3 Core: Utilizes the STM32F103C8T6 microcontroller with a 72MHz ARM Cortex-M3 core, providing high performance and efficiency.

Ample Flash Memory: Equipped with 64KB Flash memory and 20KB SRAM, offering sufficient storage for complex applications.

Multiple I/O Ports: Features numerous GPIO pins and peripheral interfaces for versatile connectivity options.

Onboard Debugging: Includes an onboard debugging interface, making it easy to program and troubleshoot the microcontroller.

Compact Form Factor: Small and lightweight, ideal for embedding into various projects and prototypes.

Specification

Microcontroller: STM32F103C8T6

Core: ARM Cortex-M3

Operating Frequency: 72 MHz

Flash Memory: 64 KB

SRAM: 20 KB

Operating Voltage: 2.0V – 3.6V

I/O Pins: 37 GPIO

Communication Interfaces: USART, I2C, SPI, CAN, USB

Analog Inputs: 10 channels with 12-bit ADC

Timers: 3 general-purpose, 1 advanced control, 1 system timer

PWM Channels: 15 channels

Debug Interface: JTAG/SWD

Weight : 44 gm

Dimensions: 53 mm x 22 mm

Operating Temperature: -40°C to +85°C
