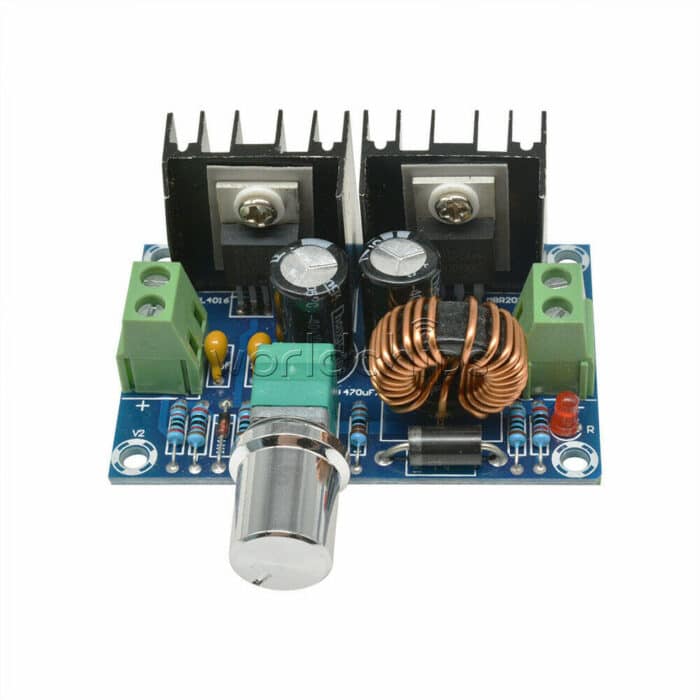

XL4016 200W 8A DC 5V-40V to 1.2-36V Buck Converter Adjust Step Down Power Module
The XL4016 is a 180 kHz fixed frequency PWM buck (step-down) DC/DC
converter, capable of driving a 12A load with high efficiency, low
ripple, and excellent line and load regulation. Requiring a minimum
number of external components, the regulator is simple to use and
include internal frequency compensation and a fixed-frequency
oscillator.
Specifications
| Input Voltage (V) | 8-36VDC |
| Output Voltage(V) | 1.25 to 36 |
| Max. Output Current (Amp) | 8 |
| Conversion Efficiency | 96% |
| Switching Frequency | 180 KHz |
| Load Regulation | ± 0.5% |
| Voltage Regulation | ± 0.5% |
| PCB Size ( L x W ) mm | 40 x 65 |
| Shipment Weight | 0.06 kg |
Features:
- Wide 8V to 36V Input Voltage Range
- Output Adjustable from 1.25V to 32V
- High efficiency up to 96%
- Built-in thermal shutdown function
- Built-in current limit function
- Built-in output short protection function
- Excellent line and load regulation
Package Includes:
- 1 x XH-M401 DC-DC Step-Down Buck Converter Power Supply Module
No Guarantee No Warranty
Product image is for reference purpose only.
