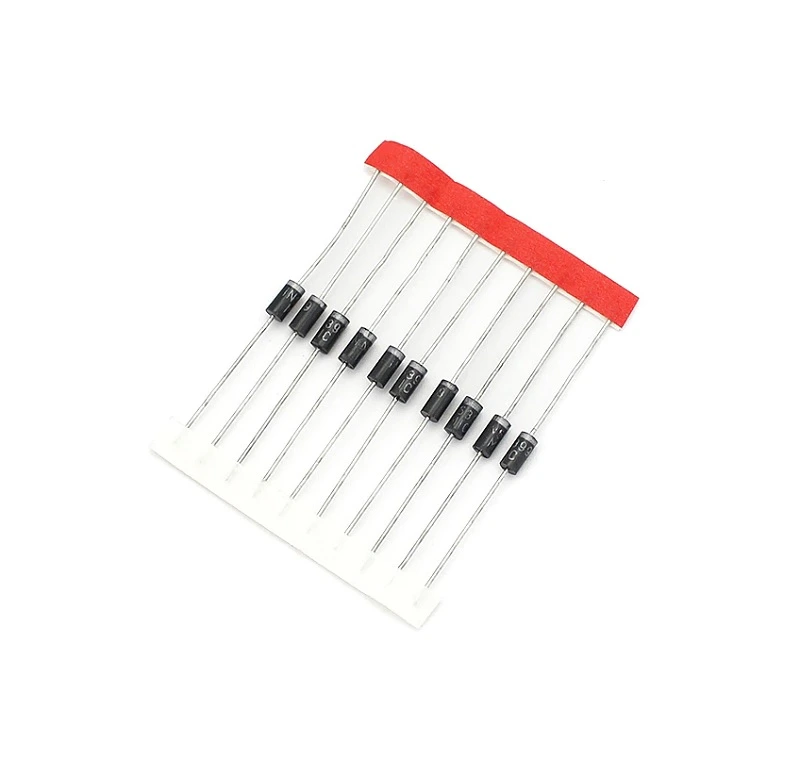

1N5399 – 1000V 1.5A General Purpose Plastic Silicon Rectifier Diode – DO-15 Package

1N5399 – 1000V 1.5A General Purpose Plastic Silicon Rectifier Diode – DO-15 Package

The 1N5399 is a general-purpose, high-voltage silicon rectifier diode, designed for AC-to-DC conversion and circuit protection. It can handle a maximum continuous reverse voltage of 1000V and a forward current of 1.5A. This diode is commonly used in power supplies, inverters, and battery charging systems. Ratings at 25℃ ambient temperature unless otherwise specified. Single phase, half wave, 60HZ, resistive or inductive load. For capacitive load, derate current by 20%. 1000V Diode, 1.5A Diode, 1KV Diode, 1KV 1.5A Diode.

Features:

• Low cost
• High current capability
• Plastic package has Underwriters Laboratory
• Flammability Classification 94V-O ctilizing
• Flame Retardant Epoxy Molding Compound.
• 1.5 ampere operation at TL=70℃ with no thermal runaway.
• Exceeds environmental standards of MIL-S-19500/228
• Low leakage.

Features/Specs:

• Manufacturer Part No: 1N5399
• Manufacturer: Hornby Electronics
• Recurrent Peak Reverse Voltage: 1000V
• Maximum RMS Voltage: 700V
• Maximum DC Blocking Voltage: 1000V
• Average Forward Rectified Current: 1.5A
• Peak Forward Surge Current: 50A
• Maximum Forward Voltage: 1.4V
• Maximum Reverse Current: 5uA
• Typical Junction Capacitance: 20pF
• Operating Junction Temperature Range: -55°C ~ 150°C
• Mounting: Through Hole
• Package/Case: DO-15

Typical Applications:

• Output Rectification in DC/DC Converters
• Polarity Protection
• Free-wheeling diodes

Package Includes:

• 1 X 1N5399 – 1000V 1.5A General Purpose Plastic Silicon Rectifier Diode – DO-15 Package
