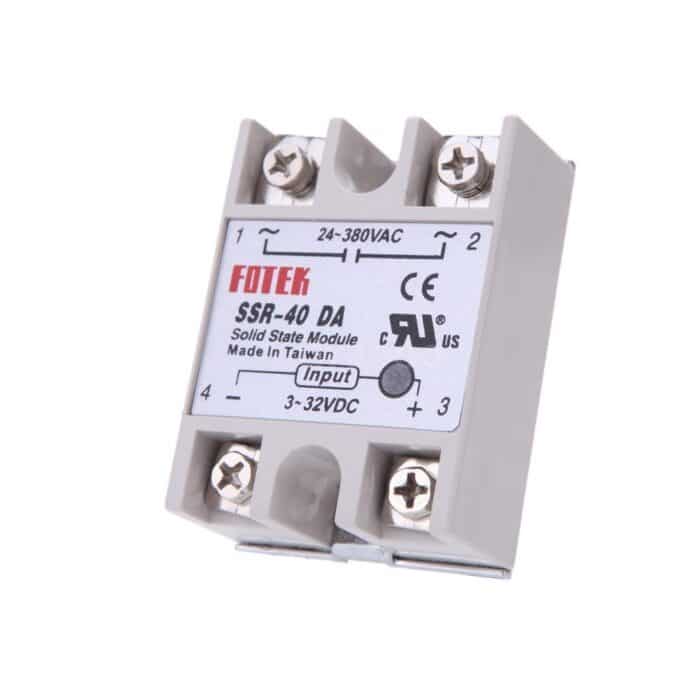

SSR-40DA Solid State Relay Module 3-32VDC-24-380VAC 40A

This is DC To AC SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC
40A. A solid state relay (SSR) allows you to control high-current AC
loads from lower voltage DC control circuitry. Solid state relays have
several advantages over mechanical relays.

One such advantage is
that they can be switched by a much lower voltage and at a much lower
current than most mechanical relays. Also, because there are no moving
contacts, solid state relays can be switched much faster and for much
longer periods without wearing out.

This particular SSR can switch
current loads of up to 40A with a 3-32V DC input and a zero cross
trigger control method. Each one of these relays is equipped with four
screw terminals (for use with ring or fork connectors) and a plastic
cover that slides over the top of the relay to protect the terminals.

Features :

1. Long service life and high reliability
2. Reduced electromagnetic interference
3. Highly reliable, compact size designed to offer users maximum simplicity.

Package includes :

1 x DC To AC SSR-40DA Solid State Relay Module

No Guarantee No Warranty
