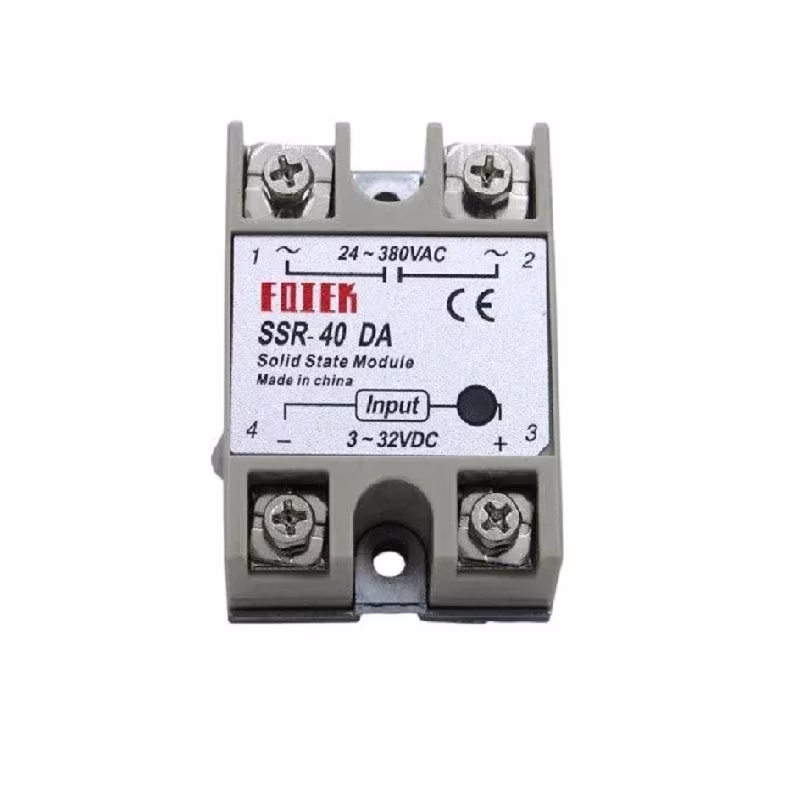

SSR-40DA Solid State Relay Module 3-32VDC-24-380VAC 40A

This is SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC 40A. A solid state relay (SSR) allows you to control high-current AC loads from lower voltage DC control circuitry. Solid state relays have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid state relays can be switched much faster and for much longer periods without wearing out. This particular SSR can switch current loads of up to 40A with a 3-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors)

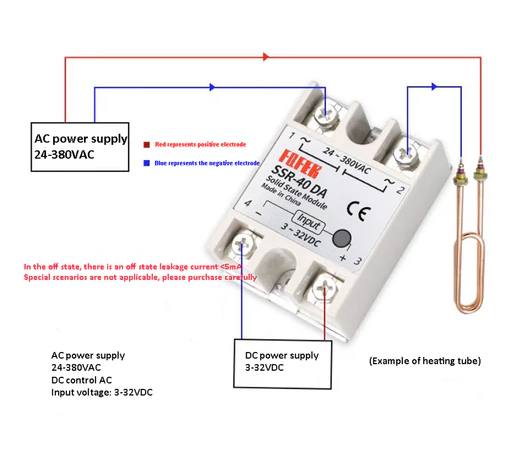

Connection Diagram:

Features :

1. Long service life and high reliability
2. Reduced electromagnetic interference
3. Highly reliable, compact size designed to offer users maximum simplicity.

Package includes :

1 x SSR-40DA Solid State Relay Module
