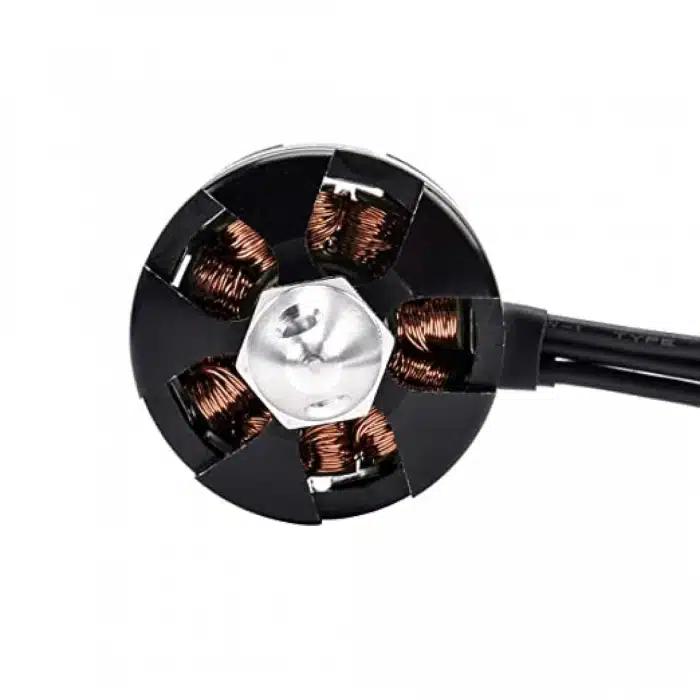

One goal in mind guided the design of the Ready to sky MT2204 2300KV Brushless Motor: increasing multirotor performance. The MT2204 2300KV from Ready to sky is the new benchmark for multirotor performance. Each motor is designed for a particular kind or application, enabling ongoing improvement and efficiency/power optimization. The best quality materials, including Japan bearings, N45SH magnets, 0.2mm laminations, 180deg oxygen-free copper wire, 0.005g balancing, and the ideal wind laydown, went into its construction. The MT2204-2300KV Multi-Rotor Motor is 100% QC authorised, and after that, each motor’s design is examined for its type of application, taking into account everything from mounting to prop type adapters.
The bottom motor frame is chamfered for easier installation on narrower frames and has enough of height for mounting hardware to winding clearance. The performance of Multistar Elite speaks for itself, and it is unrivalled in terms of quality and value. It may be used in conjunction with Orange Series HD 5′′ Propeller and Orange 3S Premium Li-PO for an exceptional multirotor flight experience. Worry no more if you are unsure of the ideal motor to use while constructing a drone since we’ve got you covered. We offer everything you need at Robu to get your drone idea off the ground.
Features:-
- provides superior Japan Bearings for efficient operation.
- Long-lasting N45SH magnets are in it.
- For the optimum operational qualities, 2mm Laminations were used in the design.
- They are more durable in class thanks to 180deg oxygen-free copper wire.
- 0.005 g or better balance is shown.
- flawless lay-down windings
Specification:
Maximum Power (W) | 350 |
---|---|
Rotational Degree | 360 |
Motor KV (RPM/V) | 2300 KV |
No Load Current (mA) | 0.6A @10V |
Shaft Diameter (mm) | 5 |
Compatible Propellers Size (inch) | 5 inch Propeller |
Compatible LiPO Batteries | 2S-3S Lipo Batterries |
Shipping Weight | 30g |
Shipping Dimensions | 14 × 9 × 3 cm |
Package Includes:-
1 X Readytosky MT2204 2300KV CCW Brushless Motor
1 X 4 pcs of allen screws
