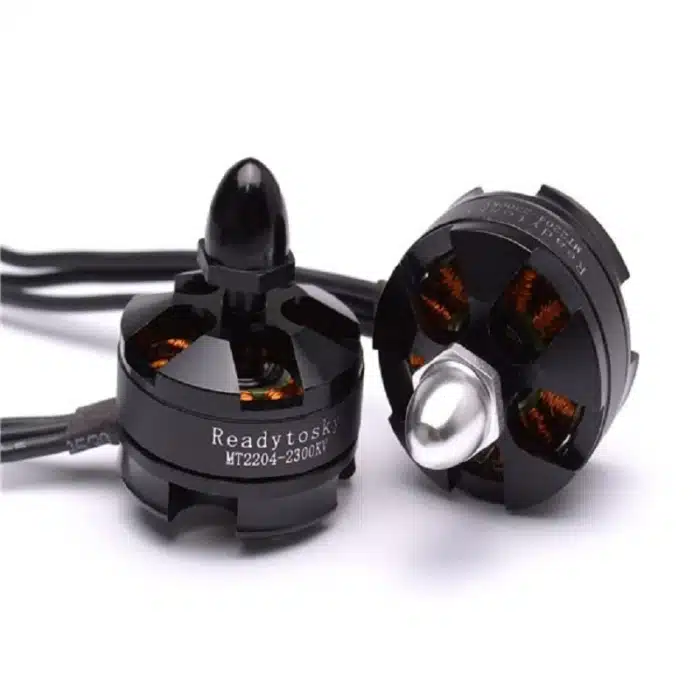

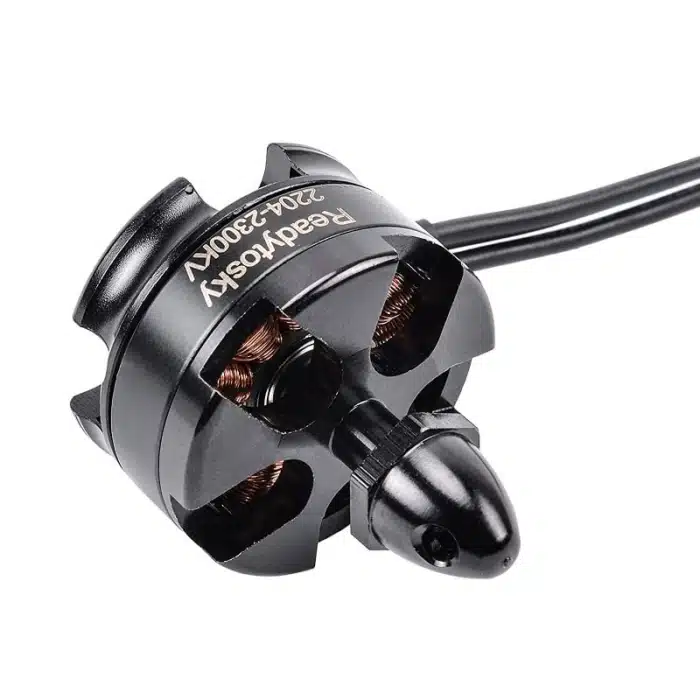

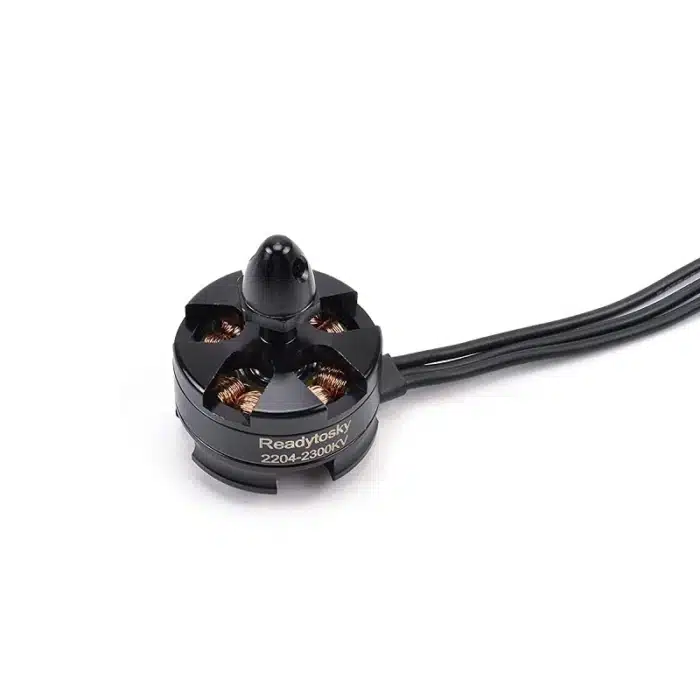

The Readytosky MT2204 2300KV CW Brushless Motor (Black cap) is designed with one thing in mind – maximizing multirotor performance!
The new Readytosky MT2204-2300KV is the new standard in Multirotor performance. Each motor is built for a specific type/application allowing for further refinement and efficiency/power to be optimized.
Built with the highest quality components from Japan bearings to N45SH magnets and 0.2mm laminations, 180deg oxygen-free copper wire, 0.005g balancing, the perfect wind laid down. The MT2204-2300KV Multi-Rotor Motor is 100% QC approved, and then the design of each motor is also evaluated for their type of application and including everything from their mounting to the prop type adapters are taken into consideration.
The lower motor frame is chamfered for easy fitment on tighter frames and has plenty of height for mounting hardware to winding clearance.
Multistar Elite is unmatched in quality and value, and the performance speaks for its self. It can be paired with Orange 3 mm premium lipo and Orange Series HD 5 Propelller for a unique multirotor flight experience.
This Multistar Elite 2204-2300KV Multi-Rotor Motor is available in CW flavor with 2.0 mm connector.
Features:
- Equips high-quality Japan Bearings for smooth operation.
- It has N45SH Magnets for long life.
- Designed with 2mm Laminations for best operational characteristics.
- 180deg oxygen-free Copper wire makes them more durable in class.
- Shows 0.005g Or better balancing.
- Perfect lay-down windings.
Specification:
| Model | 2204 |
|---|---|
| Motor KV (RPM/V) | 2300 |
| Max Thrust | 440G |
| LiPO Batteries | 2S-3S |
| Shaft Diameter (mm) | 5 |
| Rotation | CW |
| Poles | 12/14 |
| No-Load Current | 0.6A @10V |
| Max. Efficiency Current | 11.5 A |
| Maximum Current(A) | 25 A |
| Maximum Voltage(V) | 15 V |
| Maximum Watts(W) | 350 |
| Suitable Propellers | 5 inch |
| Height (mm) | 30 |
| Weight (gm) | 27 |
| Body Diameter (mm) | 28 |
| Shipping Weight | 0.06 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |
Package Includes:

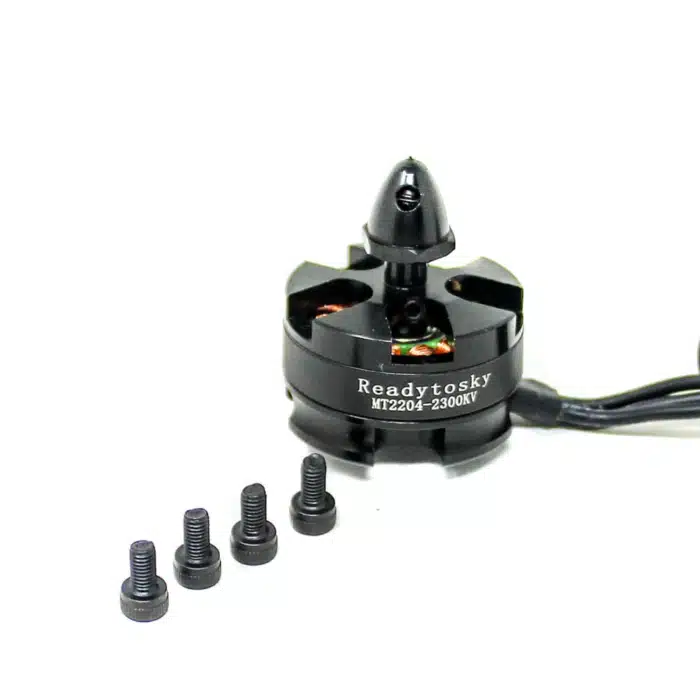

1 x Readytosky MT2204 2300KV CW Brushless Motor
1 x Compatible Allen Screw-4pcs
