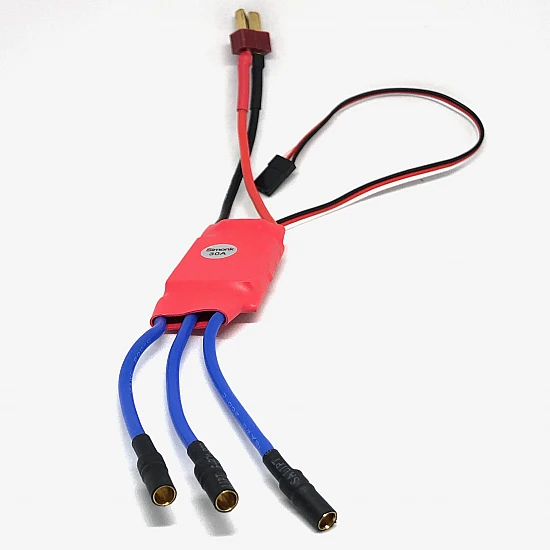

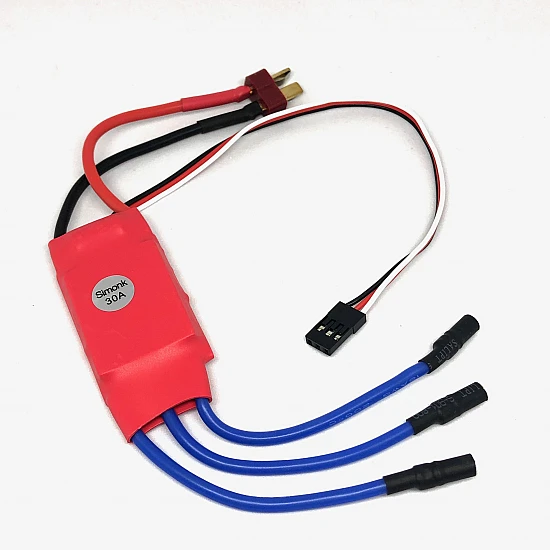

SimonK 30A BLDC ESC Electronic Speed Controller with Connectors

Product Description

The Simonk 30A BLDC ESC Electronic Speed Controller is designed for quadcopters and multi-rotors. It provides faster and better motor speed control, which improves the flight performance compared to other ESCs.

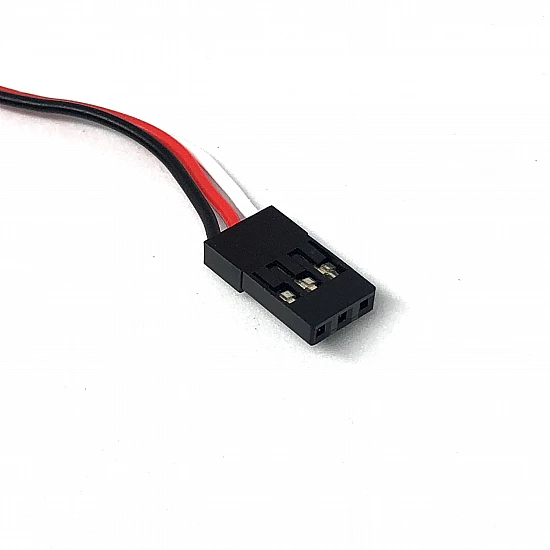

The Simonk 30A BLDC ESC Electronic Speed Controller can drive motors with a current consumption of up to 30A. It operates on 2S-3S LiPo batteries. This ESC has a battery eliminator circuit (BEC) that supplies 5V and 2A to the receiver, eliminating the need for a separate receiver battery.

This version of the ESC also has backward-polarity protection and protection on the 5V receiver line. This means that attaching a battery backward will not damage your motor controller and other BECs will not interfere with the ESC.

Connections:

Warning: In case the BLDC ESC is connected directly to the remote control receiver, never ever switch off the remote control before switching off power to the BLDC ESC. Depending on the model of the remote control, it may result in full throttle applied to the motor and it will rotate at full speed.

Features:

1. High-quality MOSFETs for BLDC motor drive
2. High-performance microcontroller for best compatibility with all types of motors at greater efficiency
3. Fully programmable with any standard RC remote control
4. Heat sink with high-performance heat transmission membrane for better thermal management
5. 3 start modes: Normal / Soft / Super-Soft, compatible with fixed-wing aircraft and helicopters
6. Throttle range can be configured to be compatible with any remote control available in the market.

Specification:

Package Includes:

1 x SimonK 30A BLDC ESC Electronic Speed Controller
